7.5 多路復用車身控制模塊 (BCM) 輸入
汽車 BCM 是復雜的系統，用于管理眾多功能，例如照明、門鎖、車窗、雨刮器、轉向信號燈以及更多的輸入。BCM 會監測這些物理開關并控制提供給車內各種負載的電源。CMOS 多路復用器可用于對輸入進行多路復用，并最大程度地減少板載 MCU 所需的 GPIO 或 ADC 輸入數量。TMUX1308-Q1 在車身控制模塊 (BCM) 或電子控制單元 (ECU) 中對各種物理開關進行復用。圖 7-1 示出了使用 TMUX1308-Q1 對系統輸入進行多路復用的典型 BCM 系統。

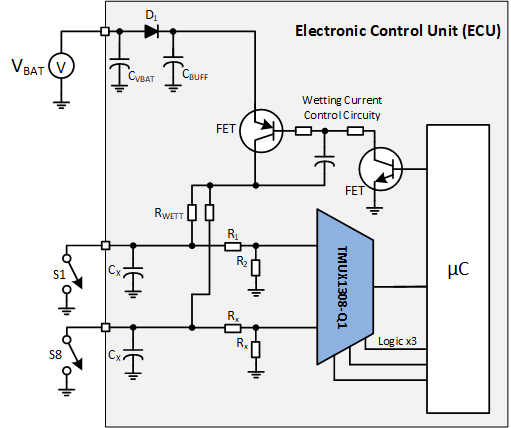

圖 7-6 多路復用 BCM 輸入
