8.10 Negative Charge Pump (VGL)
The negative charge pump (CPN) flying capacitor is driven from SWN pin with an intergated 50% duty cycle push-pull stage. The regulation is achieved using an external NPN transistor controlled by the CTRLN pin. The IC is optimized for use with transistors having a DC gain (hFE) in the range 100 to 300; however, it is possible to use transistors outside this range, depending on the application requirements. A typical application circuit is shown in Figure 8-2.

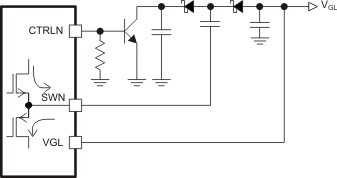

Figure 8-2 Negative Charge Pump Application Circuit
