8.27 Abnormal Operation
The TPS65198 supports abnormal operation. Abnormal operation is detected when E/O is high during the rising edge of GST (see Figure 8-12), after which the level shifter outputs are forced to the following state:
- CLK1-CLK6 low
- VST, RESET low
- EVEN and ODD in power-up state (EVEN high, ODD low) (1)
- VGH_F and VGH_R not changed (outputs follow REVERSE input as in normal operation)
Normal operation is resumed the next time E/O is low during the rising edge of GST. Upon exiting abnormal operation the state machine adopts its normal start-of-frame initial state.

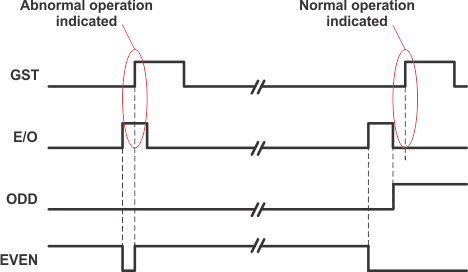

Figure 8-12 E/O During Abnormal Operation, EVEN Initially High

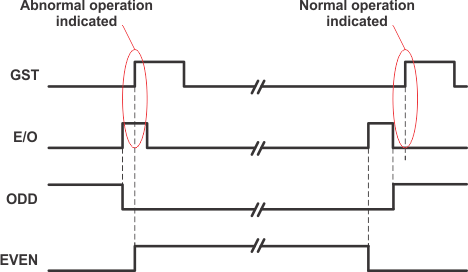

Figure 8-13 E/O During Abnormal Operation, EVEN Initially Low1. Note that because of the dead time introduced by the E/O signal during normal operation, a short low pulse may appear on the EVEN output when abnormal operation is detected (see Figure 8-12).
