Abstract

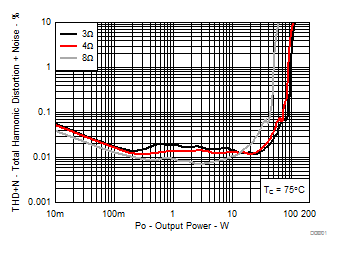

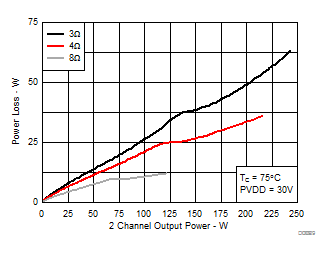

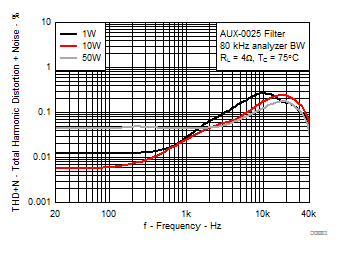

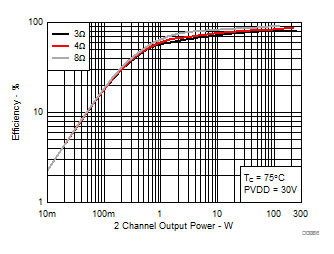

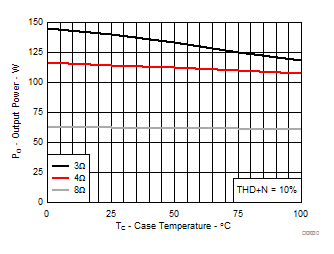

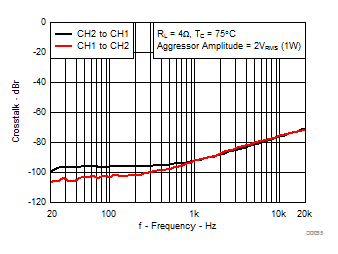

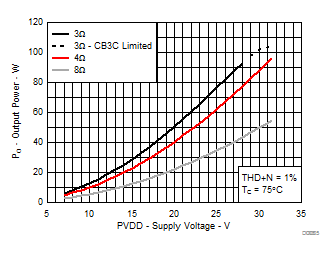

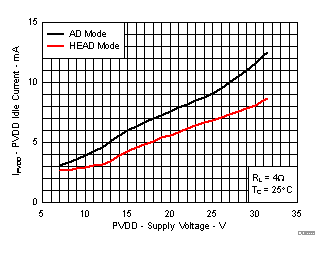

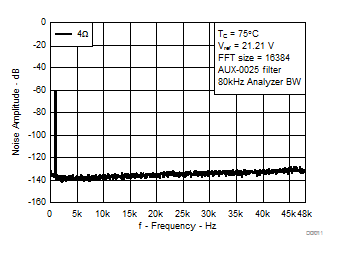

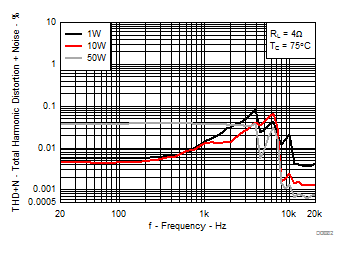

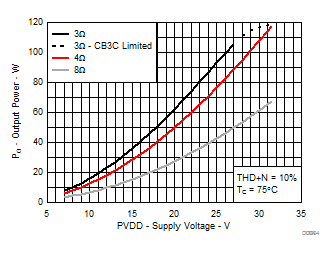

All Measurements taken at audio frequency = 1 kHz, PVDD_X = 30 V, VDD = 5 V, GVDD = 5 V, RL = 4 ?, fS = 600 kHz, 18 dB, TC = 75°C, Output Filter: LDEM = 10 μH, CDEM = 1 μF, AD-Modulation, AES17 + AUX-0025 measurement filters, unless otherwise noted.

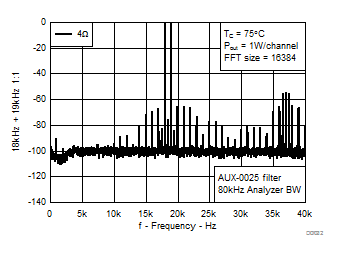

| 18 kHz + 19 kHz | Ratio 1 : 1 |

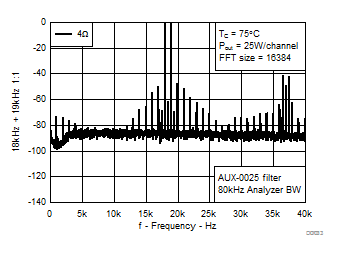

| 18 kHz + 19 kHz | Ratio 1 : 1 |
