8.3.3 AD-Mode and HEAD-Mode PWM Modulation
TPA3221 has the option of using either AD-Mode or HEAD-Mode PWM modulation scheme. AD mode has continuous switching of the two half bridge outputs in each BTL output channel. Both half bridge outputs are switching in HEAD mode, but with reduced duty cycle for idle operation and while playing small signals. With higher output levels one half bridge stops switching on HEAD mode operation. HEAD benefits both device power loss and EMI performance, where AD mode is considered to have the highest audio performance.
Figure 8-8 AD-Mode Configuration
Figure 8-9 HEAD-Mode Configuration

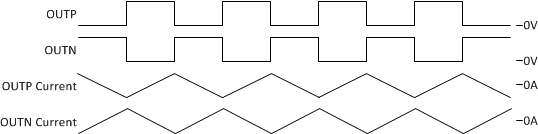

Figure 8-10 AD Mode Output Waveforms, Idle

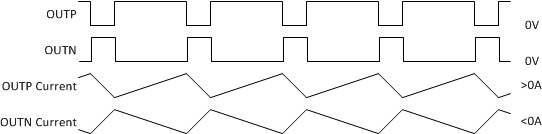

Figure 8-11 AD Mode Output Waveforms, High Level Output

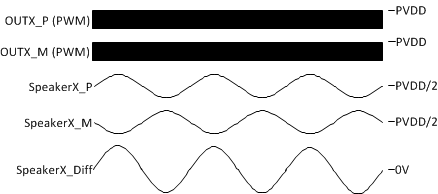

Figure 8-12 AD Mode Speaker Output Signals, Low or and High Level Output

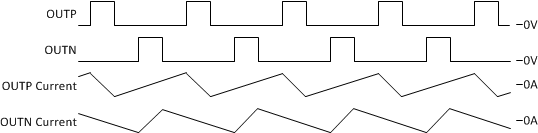

Figure 8-13 HEAD Mode Output Waveforms, Idle

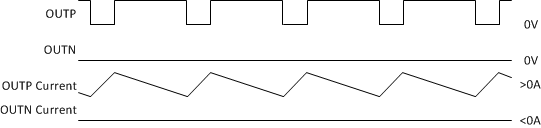

Figure 8-14 HEAD Mode Output Waveforms, High Level Output

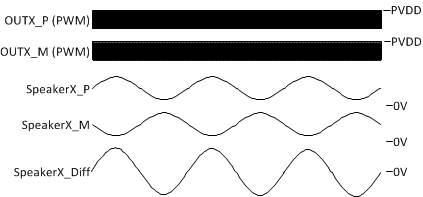

Figure 8-15 HEAD Mode Speaker Output Signals, Low Level Output

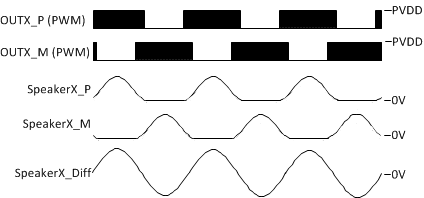

Figure 8-16 HEAD Mode Speaker Output Signals, High Level Output
