ZHCSV76A June 2022 – March 2024 TMS570LC4357-SEP
PRODUCTION DATA
請參考 PDF 數(shù)據(jù)表獲取器件具體的封裝圖。

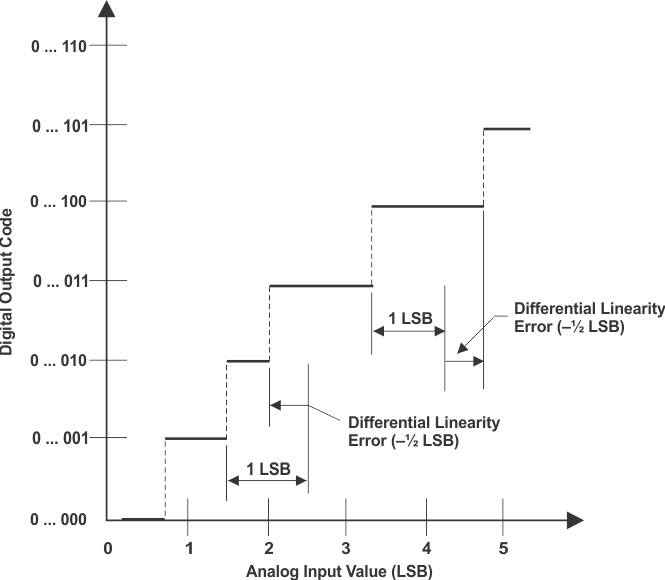

The differential nonlinearity error shown in Figure 8-12 (sometimes referred to as differential linearity) is the difference between an actual step width and the ideal value of 1 LSB.

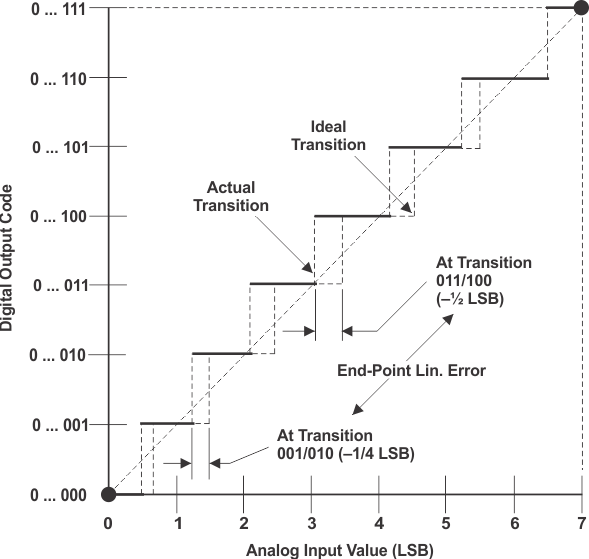

The integral nonlinearity error shown in Figure 8-13 (sometimes referred to as linearity error) is the deviation of the values on the actual transfer function from a straight line.
