The LP8860-Q1 outputs can be tied together to drive LED with higher current. To drive a 300 mA/string, connect 2 outputs together. All 4 outputs connected together can drive up to a 600-mA LED string.

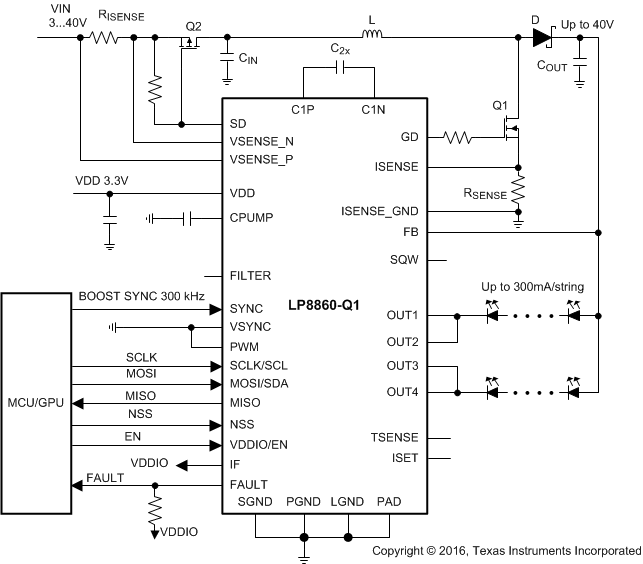

Figure 7-10 Two Channels at 300 mA/String, VDD = 3.3 V, SPI
