ZHCSCK8H May 2014 – April 2025 LP8860-Q1
PRODUCTION DATA
Depending on EEPROM settings the LP8860-Q1 can be started up or shut down differently. Typical start-up/shutdown sequence is shown in Figure 6-35.

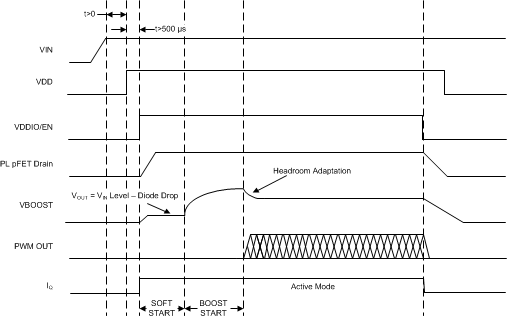

Figure 6-35 Timing Diagram for the Typical Start-Up and Shutdown
