SPRS814D March 2012 – October 2019 TMS320C6655 , TMS320C6657
PRODUCTION DATA.
請參考 PDF 數據表獲取器件具體的封裝圖。
The C66x CorePac consists of several components:
The C66x CorePac also provides support for memory protection, bandwidth management (for resources local to the C66x CorePac) and address extension. Figure 7-1 shows a block diagram of the C66x CorePac.

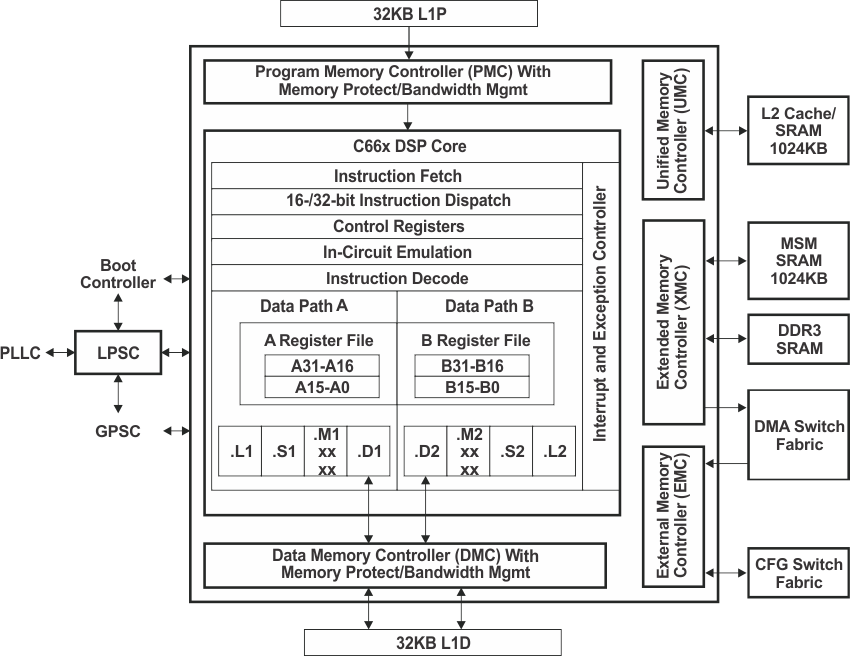

Figure 7-1 C66x CorePac Block Diagram For more detailed information on the TMS320C66x CorePac on the C665x device, see the C66x CorePac User's Guide.
