1.1.2 Open-Drain Releasing Bus
When the slave or master wishes to transmit a logic high, it may only release the bus by turning off the pull-down FET. This leaves the bus floating, and the pull-up resistor will pull the voltage up to the voltage rail, which will be interpreted as a high. Figure 4 shows the flow of current through the pull-up resistor, which pulls the bus high.

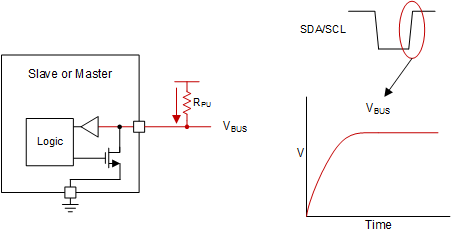

Figure 4. Releasing the Bus With An Open-Drain Interface
