ZHCSFS6B July 2016 – June 2018 SN65DSI85-Q1
PRODUCTION DATA.
- 1 特性
- 2 應用
- 3 說明
- 4 修訂歷史記錄
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Parameter Measurement Information
-
8 Detailed Description
- 8.1 Overview
- 8.2 Functional Block Diagram
- 8.3 Feature Description
- 8.4 Device Functional Modes
- 8.5 Programming
- 8.6
Register Maps
- 8.6.1 Local I2C Interface Overview
- 8.6.2 Control and Status Registers Overview
- 8.6.3
CSR Bit
- 8.6.3.1 ID Registers (address = 0x00 to 0x08)
- 8.6.3.2 Reset and Clock Registers
- 8.6.3.3 DSI Registers
- 8.6.3.4 LVDS Registers
- 8.6.3.5
Video Registers
- 8.6.3.5.1 Address 0x20
- 8.6.3.5.2 Address 0x21
- 8.6.3.5.3 Address 0x22
- 8.6.3.5.4 Address 0x23
- 8.6.3.5.5 Address 0x24
- 8.6.3.5.6 Address 0x25
- 8.6.3.5.7 Address 0x26
- 8.6.3.5.8 Address 0x27
- 8.6.3.5.9 Address 0x28
- 8.6.3.5.10 Address 0x29
- 8.6.3.5.11 Address 0x2A
- 8.6.3.5.12 Address 0x2B
- 8.6.3.5.13 Address 0x2C
- 8.6.3.5.14 Address 0x2D
- 8.6.3.5.15 Address 0x2E
- 8.6.3.5.16 Address 0x2F
- 8.6.3.5.17 Address 0x30
- 8.6.3.5.18 Address 0x31
- 8.6.3.5.19 Address 0x32
- 8.6.3.5.20 Address 0x33
- 8.6.3.5.21 Address 0x34
- 8.6.3.5.22 Address 0x35
- 8.6.3.5.23 Address 0x36
- 8.6.3.5.24 Address 0x37
- 8.6.3.5.25 Address 0x38
- 8.6.3.5.26 Address 0x39
- 8.6.3.5.27 Address 0x3A
- 8.6.3.5.28 Address 0x3B
- 8.6.3.5.29 Address 0x3C
- 8.6.3.5.30 Address 0x3D
- 8.6.3.5.31 Address 0x3E
- 8.6.3.6 IRQ Registers
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12器件和文檔支持
- 13機械、封裝和可訂購信息
7 Parameter Measurement Information

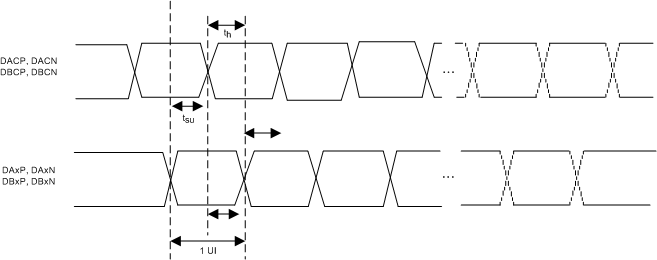

Figure 1. DSI HS Mode Receiver Timing Definitions

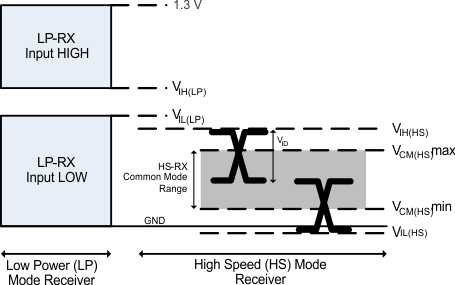

Figure 2. DSI Receiver Voltage Definitions

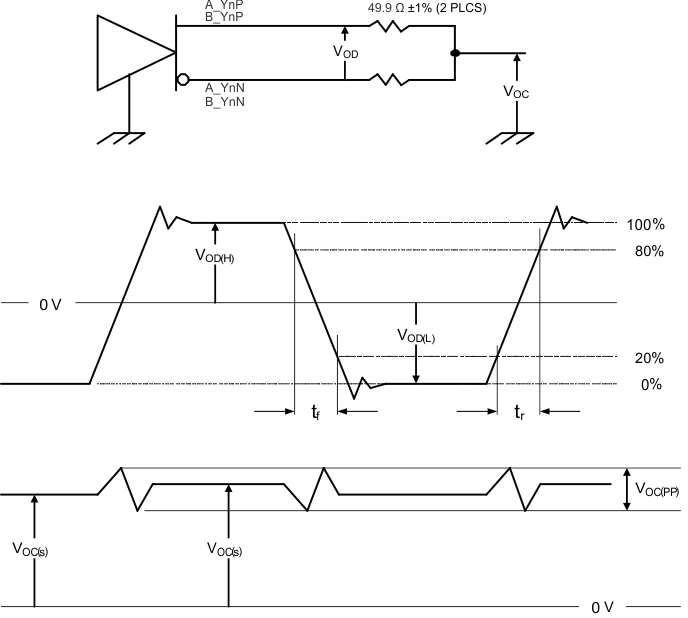

Figure 3. Test Load and Voltage Definitions for LVDS Outputs

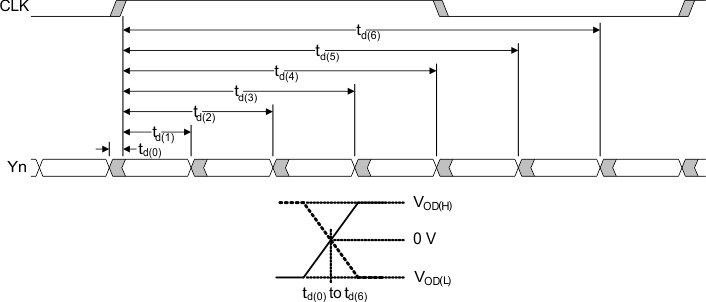

Figure 4. SN65DSI85-Q1 LVDS Timing Definitions
1. See the ULPS section of the data sheet for the ULPS entry and exit sequence.
2. ULPS entry and exit protocol and timing requirements must be met according to the MIPI DPHY specification.

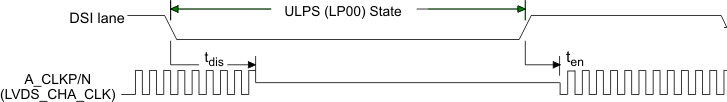

Figure 5. ULPS Timing Definition
