10.2 Layout Example

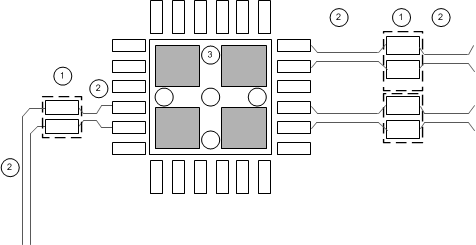

The following example demonstrates the high speed signal trace routing to the LMH1226.
- Anti-pad under passive components.
- 100-Ω coupled trace.
- Vias with solder mask.
Figure 29. LMH1226 PCB Layout Example
