8.2.4 Application Performance Plots
The LMH1226 performance was measured with the test setup shown in Figure 22.
Figure 22. Test Setup for LMH1226 PCB Equalizer (IN1±) The eye diagrams in this subsection show how the LMH1226 improves overall signal integrity in the data path for 100-Ω differential FR4 PCB trace at IN1.
A. VOD_DE = H, IN_OUT_SEL = L, OUT_CTRL = L

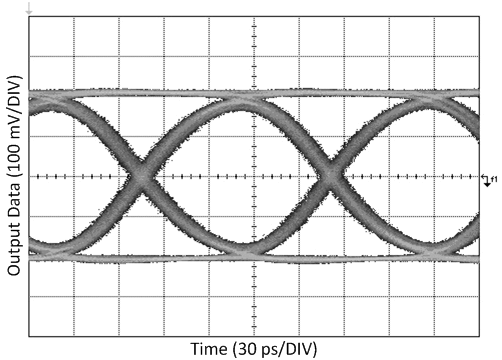

Figure 23. 10.3125 Gbps, TL = 20 in. 5-Mil FR4, EQ Only
A. VOD_DE = H, IN_OUT_SEL = H, OUT_CTRL = L

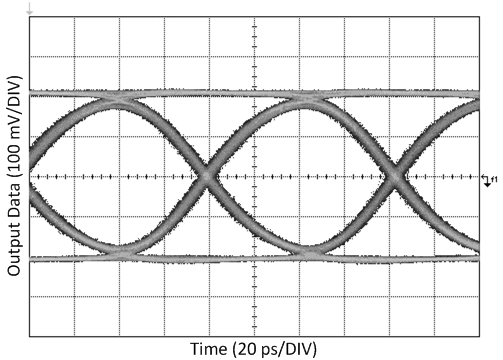

Figure 25. 11.88 Gbps, TL = 20 in. 5-Mil FR4, EQ Only
A. VOD_DE = H, IN_OUT_SEL = L, OUT_CTRL = F

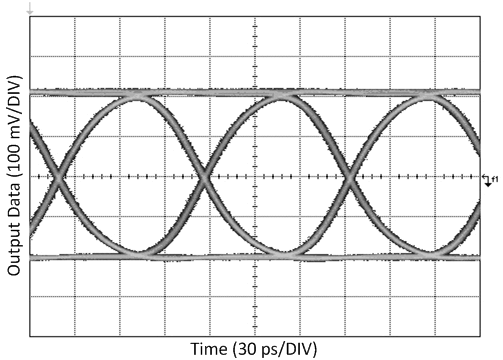

Figure 24. 10.3125 Gbps, TL = 20 in. 5-Mil FR4, Reclocked
A. VOD_DE = H, IN_OUT_SEL = H, OUT_CTRL = F

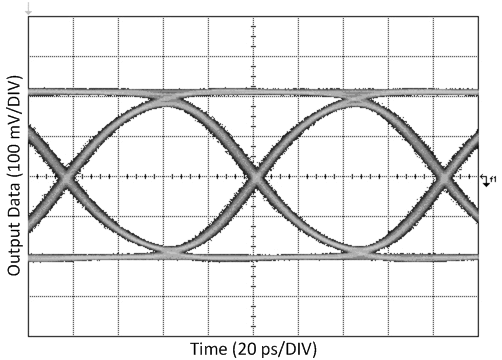

Figure 26. 11.88 Gbps, TL = 20 in. 5-Mil FR4, Reclocked
