This section presents the BQ79616-Q1 Evaluation Module (EVM) design as a layout example.
Figure 11-2 Top
Signal Layer
Figure 11-3 Second Layer with Solid, Separate Ground Planes

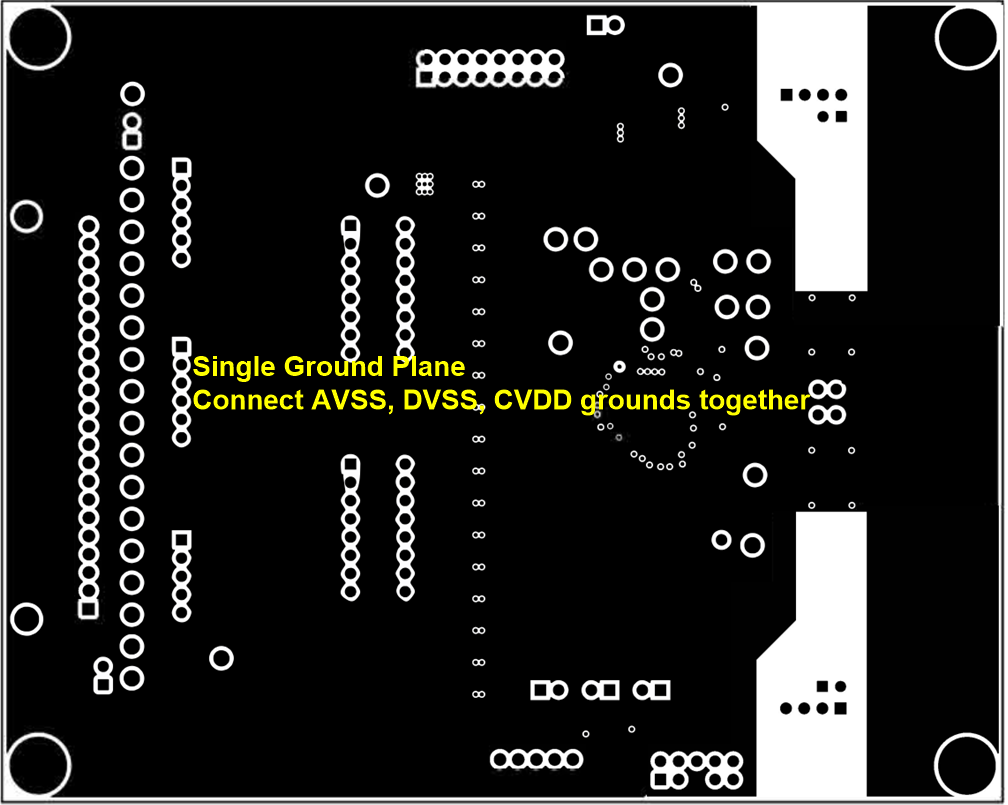

Figure 11-4 ThIrd Layer with Single Ground Plane
