Communication is not supported in SHUTDOWN mode, host must send a WAKE ping to enter ACTIVE mode. Once device transitions from SHUTDOWN mode to ACTIVE mode, the following table indicates the expected fault bits being set under such transition has occurred.
| Expected fault bits after waking up from SHUTDOWN | |
|---|---|
| FAULT_SYS[DRST] = 1 | Digital reset by the wake ping |
| FAULT_COMM1[COMMCLR_DET] = 1 | UART engine is reset |

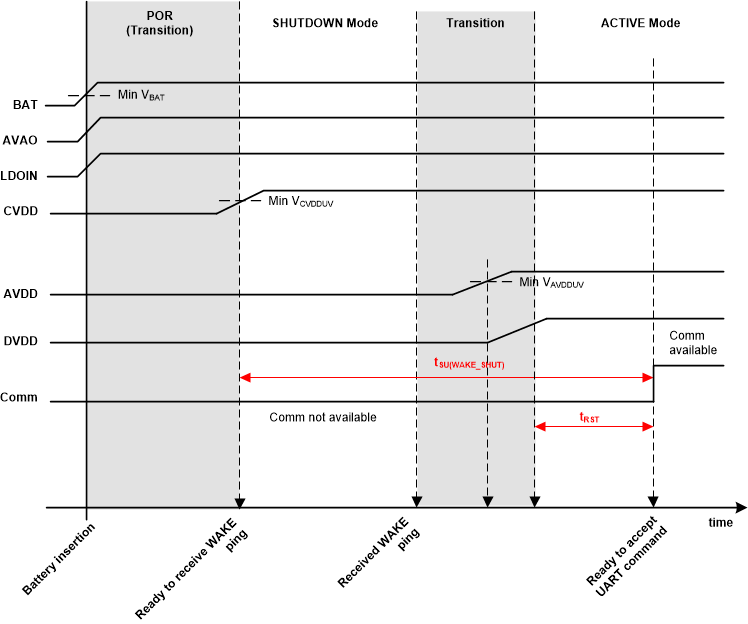

Figure 8-37 SHUTDOWN to ACTIVE Mode
Transition
