DAC definitions

Resolution = n	The number of bits used to quantify the output
Number of codes = 2ⁿ	The number of input code combinations
Full-scale range output = FSR	Sets the converter output range and the LSB voltage
LSB = FSR / 2ⁿ	The voltage step size of each LSB
Full-scale output voltage = (2ⁿ – 1) × 1LSB	Full-scale output voltage of the DAC
Full-scale input code = 2ⁿ – 1	Largest code that can be written
Transfer function: V_OUT = number of codes × (FSR/2ⁿ)	Relationship between output voltage and input code

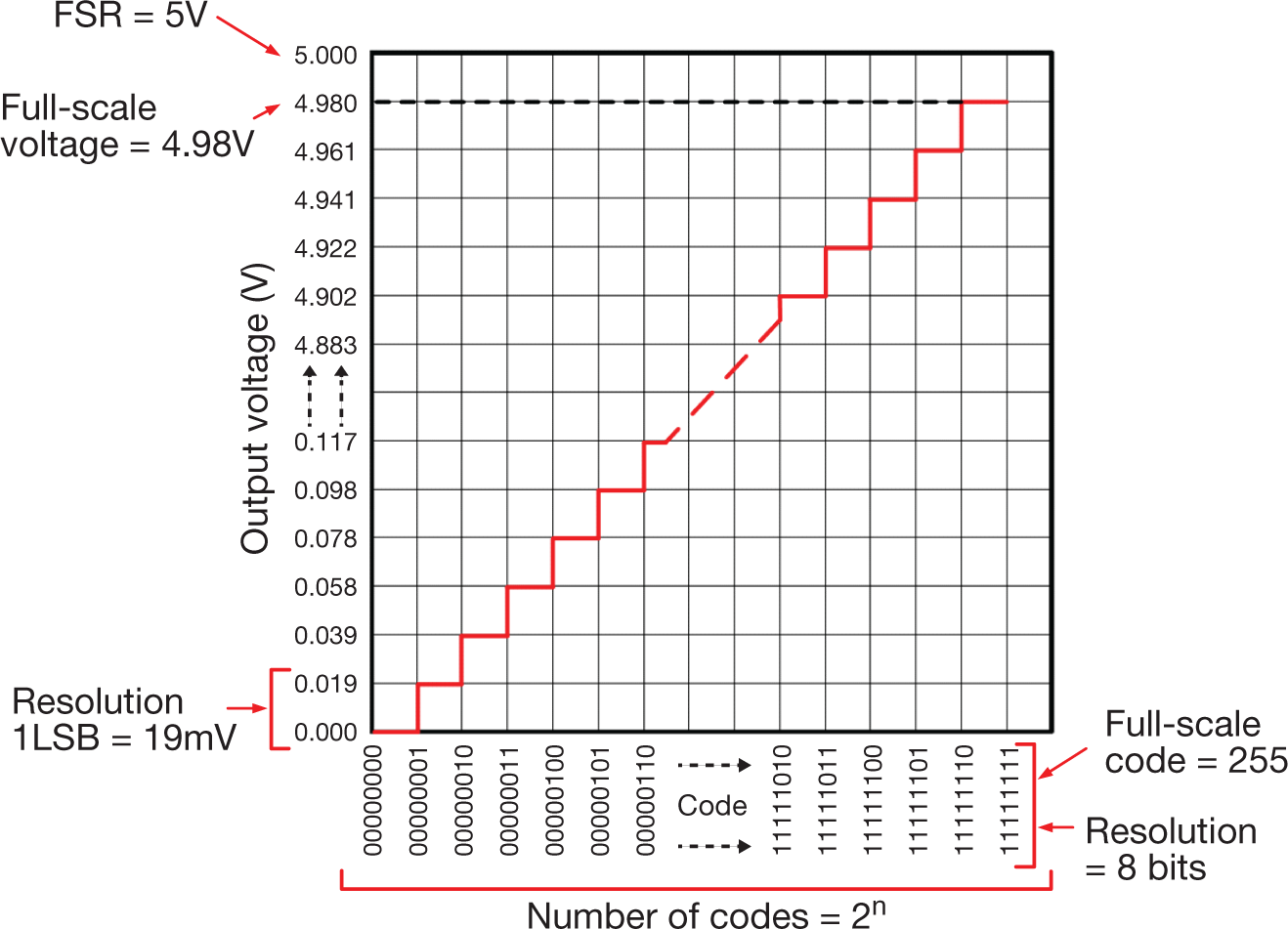

Figure 97 DAC transfer function
