Charge injection (Q_INJ)

Voltage change introduced at the output of switch when switch is turned ON or OFF

Equation 244.

Q_{INJ} = (C_{D} + C_{L}) \cdot Δ V_{OUT}

With large load capacitance, effect of C_D can be ignored

Equation 245.

V_{ERROR} = Δ V_{OUT} \approx \frac{Q_{INJ}}{C_{L}}

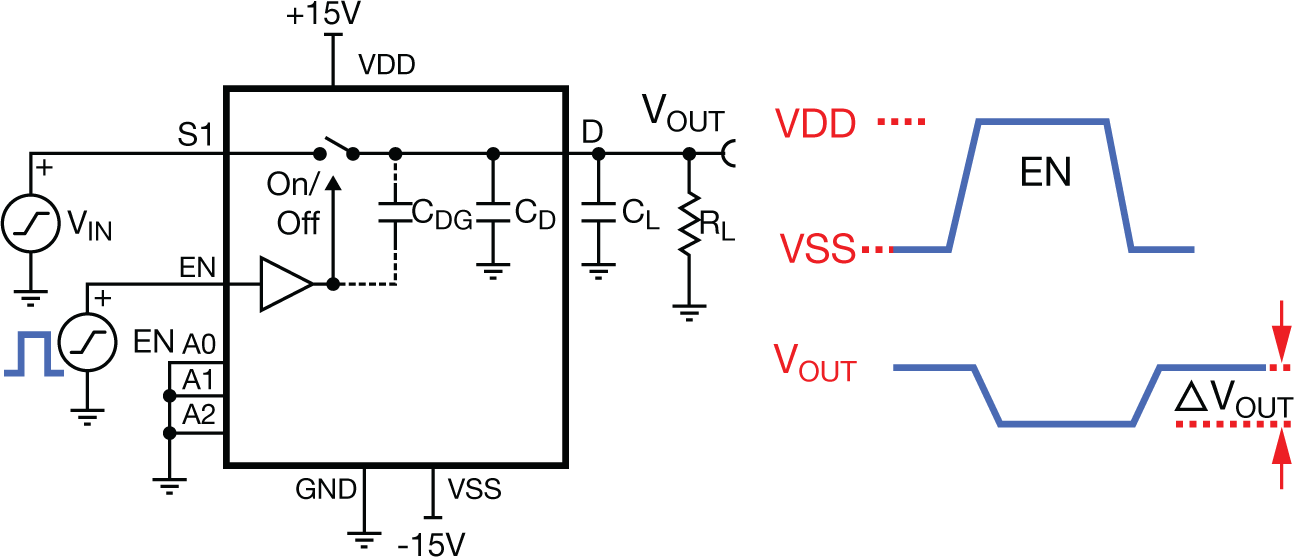

Figure 113 Simplified model for MUX charge injection error

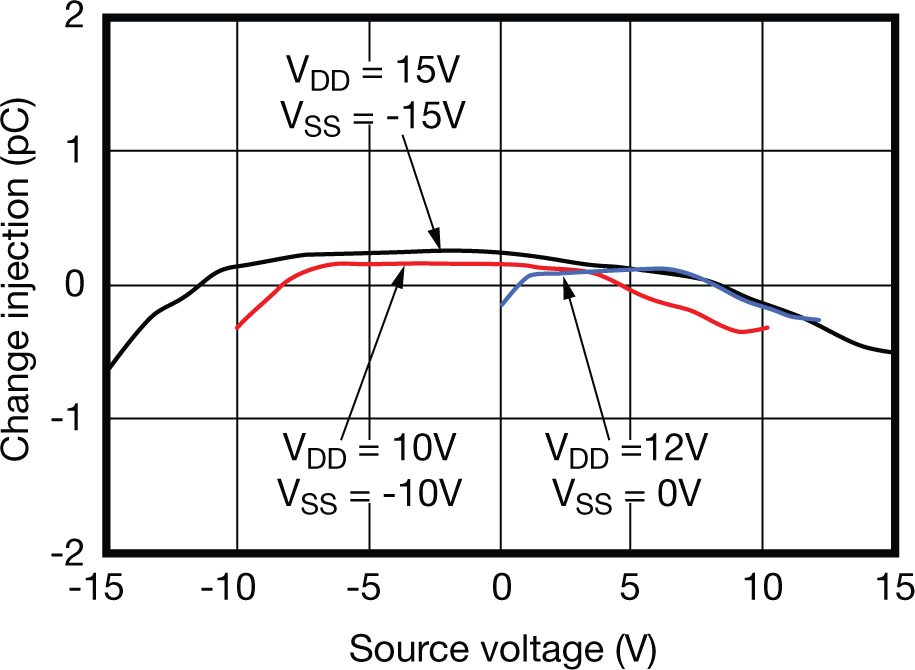

A typical multiplexer charge injection curve vs. input (source) voltage is shown below.

Figure 114 Typical charge injection curve vs. source voltage
