Stability open loop SPICE analysis

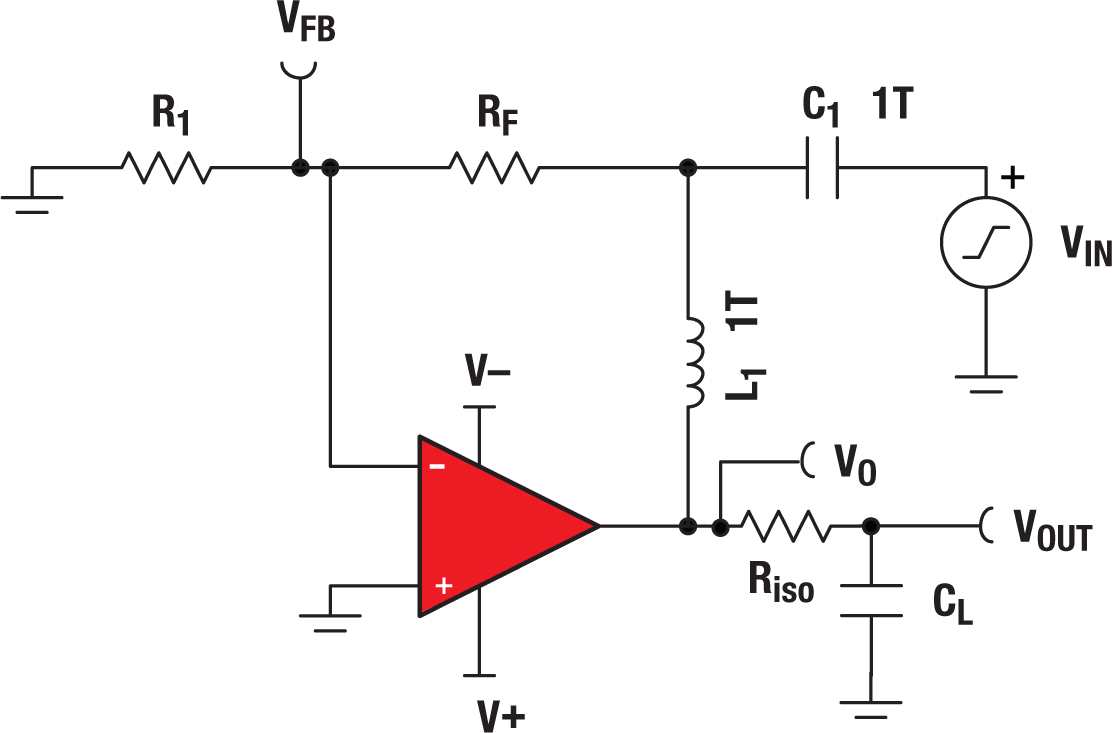

Figure 51 Common spice test circuit used for stability

Loaded open-loop gain

Equation 132.

A_{OL_LOADED} = \frac{V_{O}}{V_{FB}}

Feedback factor

Equation 133.

β = V_{FB}

Closed-loop noise gain

Equation 134.

\frac{1}{β} = \frac{1}{V_{FB}}

Loop gain

Equation 135.

A_{OL_LOADED} \times β = V_{O}

Where

V_O = the voltage at the output of the op amp

V_OUT = the voltage output delivered to the load, which may be important to the application but is not considered in stability analysis

V_FB = feedback voltage

R_F, R₁, R_iS0 and C_L = the op amp feedback network and load. Other op amp topologies will have different feedback networks; however, the test circuit will be the same for most cases. Figure 50 shows the exception to the rule (multiple feedback).

C₁ and L₁ = components that facilitate SPICE analysis. They are large (1TF, 1TH) to make the circuit closed-loop for DC, but open loop for AC frequencies. SPICE requires closed-loop operation at DC for convergence.

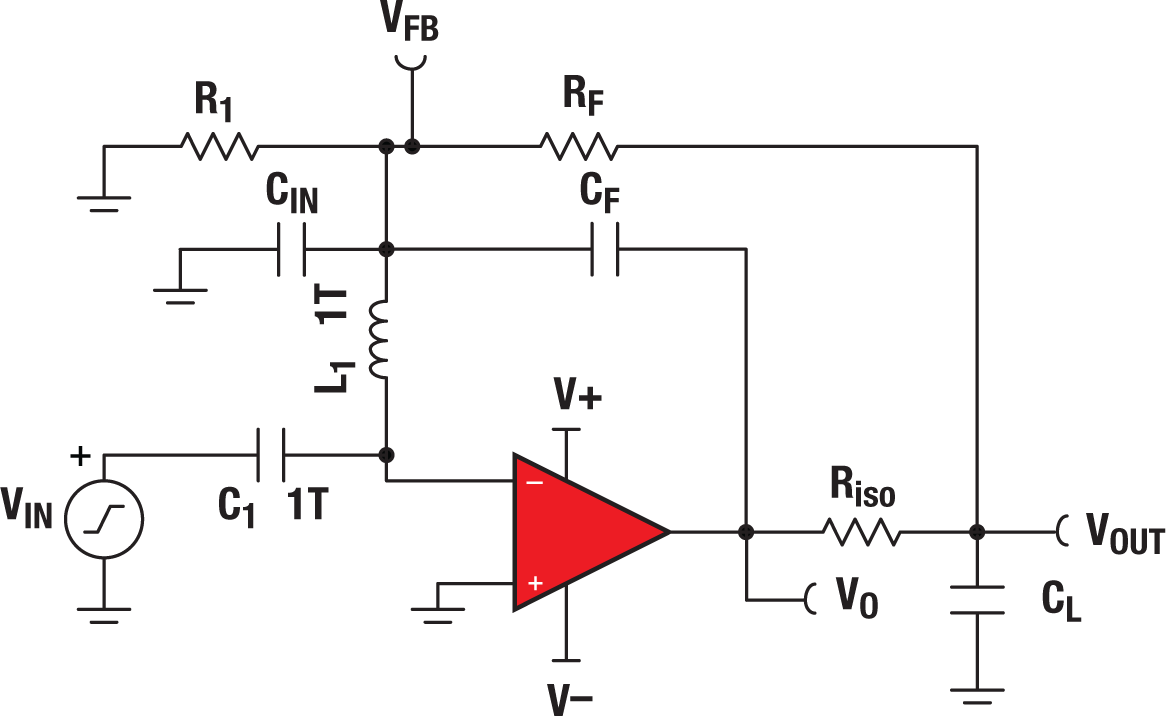

Figure 52 Alternative (multiple feedback) SPICE test circuit used for stability

Loaded open loop gain

Equation 136.

A_{OL_LOADED} = V_{O}

Feedback factor

Equation 137.

β = \frac{V_{FB}}{V_{O}}

Closed-loop noise gain

Equation 138.

\frac{1}{β} = \frac{V_{O}}{V_{FB}}

Loop gain

Equation 139.

A_{OL_LOADED} \times β = V_{FB}

Where

V_O = the voltage at the output of the op amp

V_OUT = the voltage output delivered to the load. This may be important to the application but is not considered in stability analysis.

V_FB = feedback voltage

R_F, R₁, R_iso and C_F = the op amp feedback network. Because there are two paths for feedback, the loop is broken at the input.

C₁ and L₁ = components that facilitate SPICE analysis. They are large (1TF, 1TH) to make the circuit closed loop for DC, but open loop for AC frequencies. SPICE requires closed-loop operation at DC for convergence.

C_IN = the equivalent input capacitance taken from the op amp datasheet. This capacitance normally does not need to be added because the model includes it. However, when using this simulation method the capacitance is isolated by the 1TH inductor.
