Calculating amplifier offset voltage

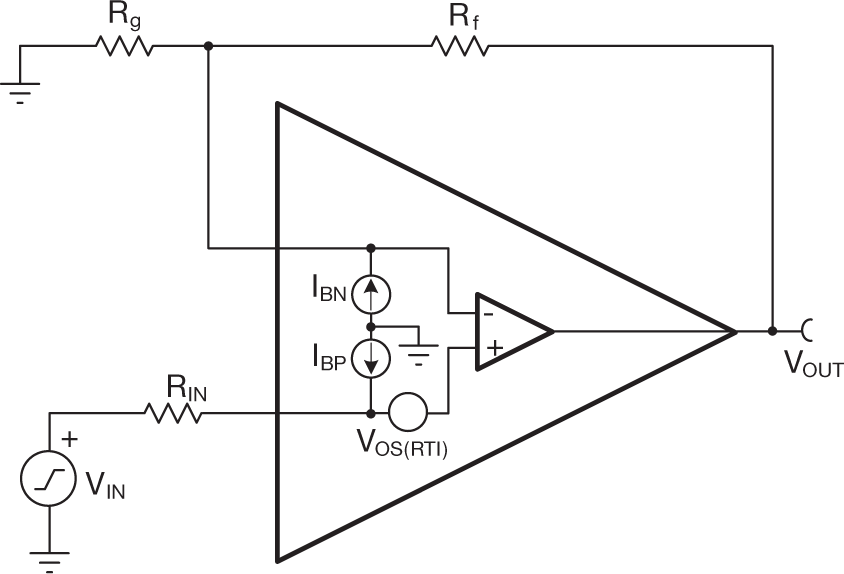

Figure 37 Op amp bias current and offset calculations

Equivalent feedback resistance

Equation 97.

R_{eq} = \frac{R_{f} \cdot R_{g}}{R_{f} + R_{g}}

Offset RTI from I_BN flowing into feedback

Equation 98.

V_{OS (IBN)} = I_{BN} \cdot R_{eq}

Offset RTI from I_BP flowing into source impedance

Equation 99.

V_{OS (IBP)} = I_{BP} \cdot R_{IN}

Directly adding the offset components. Conservative estimate.

Equation 100.

V_{OS (total worst)} = \pm V_{OS (Amp)} \pm V_{OS (BN)} \pm V_{OS (IBP)}

Statistically adding the offset components. More realistic estimate.

Equation 101.

V_{OS (total stat)} = \sqrt{V_{OS (Amp)}^{2} + V_{OS (IBN)}^{2} + V_{OS (IBP)}^{2}}

Noise gain of op amp (always non-inverting gain)

Equation 102.

G_{n} = \frac{R_{f}}{R_{g}} + 1

Offset referred to the output

Equation 103.

V_{OS (RTO)} = V_{OS (RTI)} \cdot G_{n}

Where

R_f, R_g = the feedback and gain setting resistors

R_IN = resistance seen by noninverting input

I_BN, I_BP = the current flowing from the inverting (I_BN) and noninverting (I_BP) op amp input as specified in the data sheet

V_os(amp) = the input offset voltage specification from the op amp data sheet

V_OS(RTI) = this is the offset referred to the input. This can be either V_os(total _worst) or V_{os(total stat)}.
