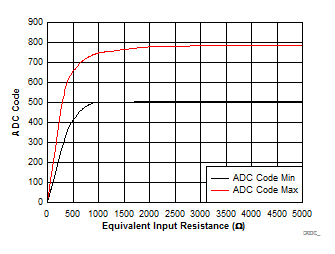

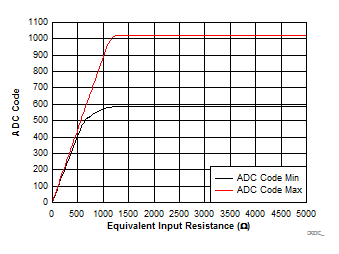

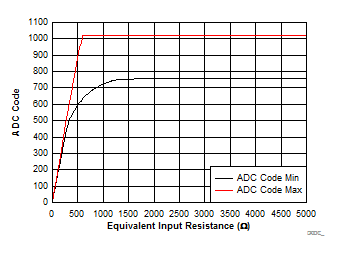

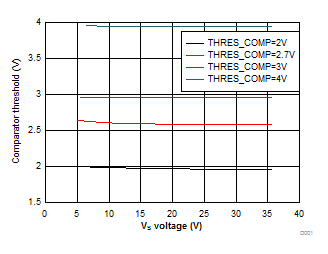

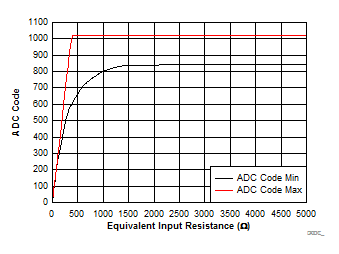

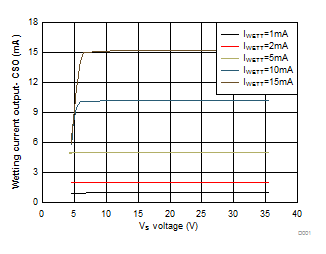

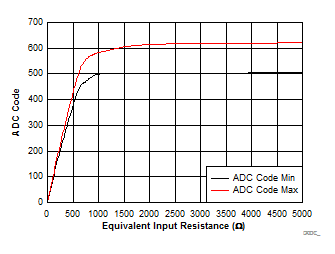

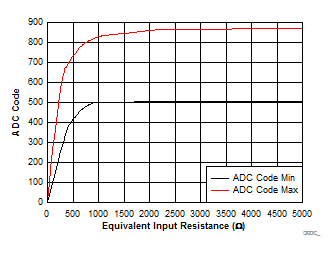

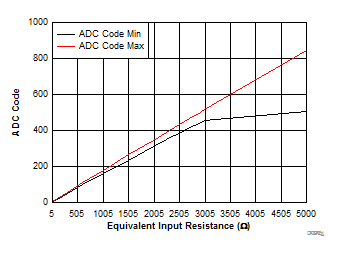

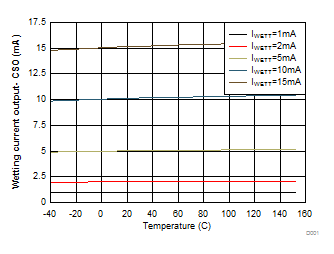

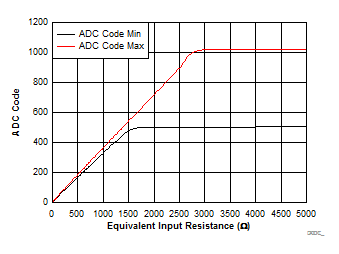

6.7 Typical Characteristics
| TA = 25°C |
| TA = 25°C |
| I(WETT) = 2 mA | 4.5 V ≤ VS ≤ 35 V |
| I(WETT) = 5 mA | 5.5 V ≤ VS ≤ 35 V |
| I(WETT) = 10 mA | 6 V ≤ VS ≤ 35 V |
| I(WETT) = 15 mA | 6.5 V ≤ VS ≤ 35 V |
| VS = 12 V |
| I(WETT) = 1 mA | 4.5 V ≤ VS ≤ 35 V |
| I(WETT) = 5 mA | 4.5 V ≤ VS < 5.5 V |
| I(WETT) = 10 mA | 4.5 V ≤ VS < 6 V |
| I(WETT) = 15 mA | 4.5 V ≤ VS < 6.5 V |
