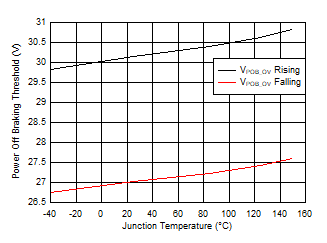

6.8 Typical Characteristics
VPVDD =
37 V, additional leakage to VPOB_OV comparator.

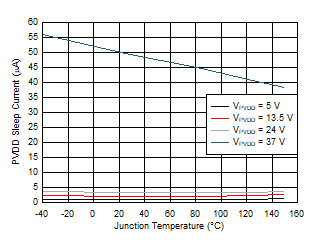

Figure 6-2 PVDD
Sleep Current
VPVDD = 13.5
V

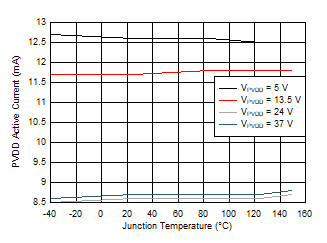

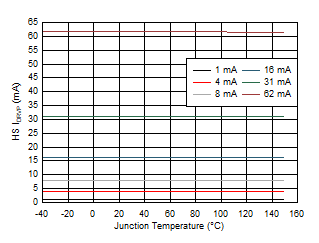

Figure 6-8 High-Side Gate Driver Source Current
VPVDD = 13.5
V

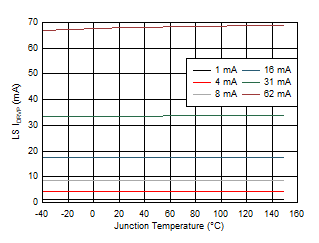

Figure 6-10 Low-Side Gate Driver Source Current

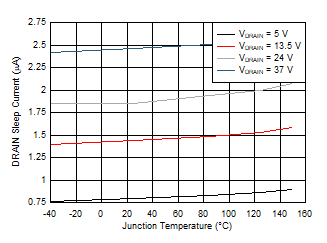

Figure 6-3 DRAIN
Sleep Current
VPVDD = 13.5
V

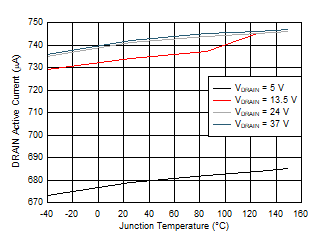

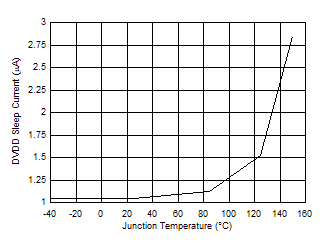

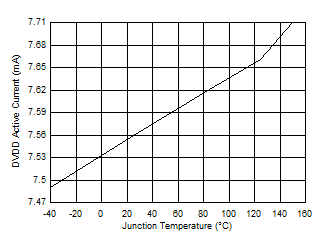

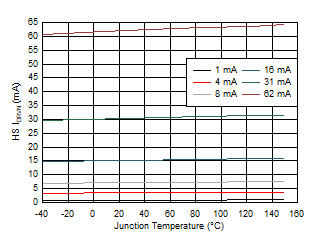

Figure 6-9 High-Side Gate Driver Sink Current
VPVDD = 13.5
V

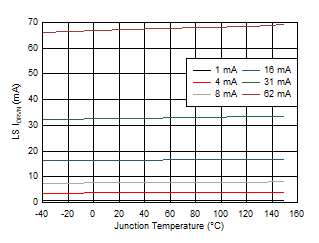

Figure 6-11 Low-Side Gate Driver Sink Current
