7.2 Functional Block Diagram

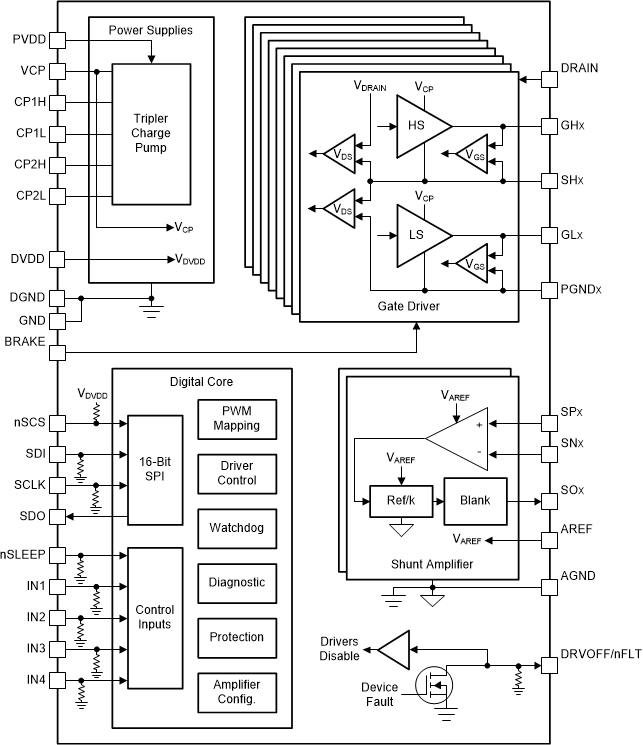

Figure 7-1 Block Diagram for DRV8718S-Q1 RVJ
Package

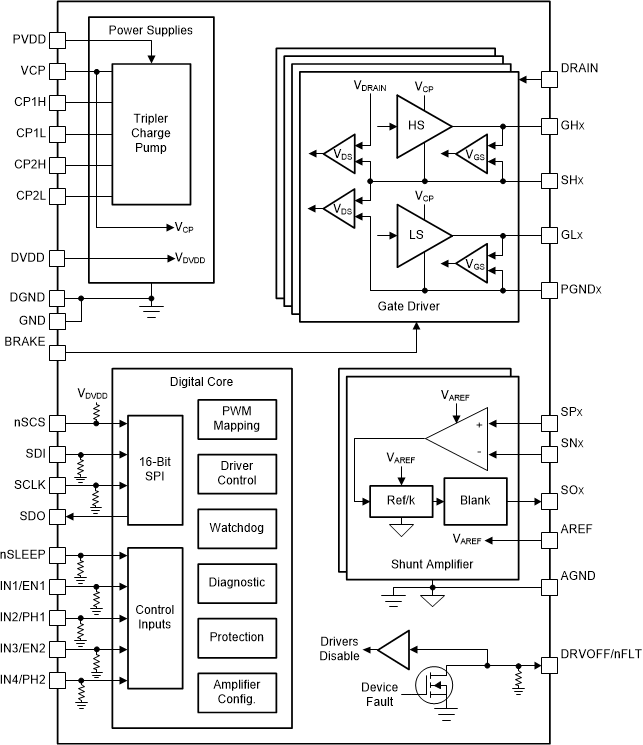

Figure 7-2 Block Diagram for DRV8714S-Q1 RVJ Package

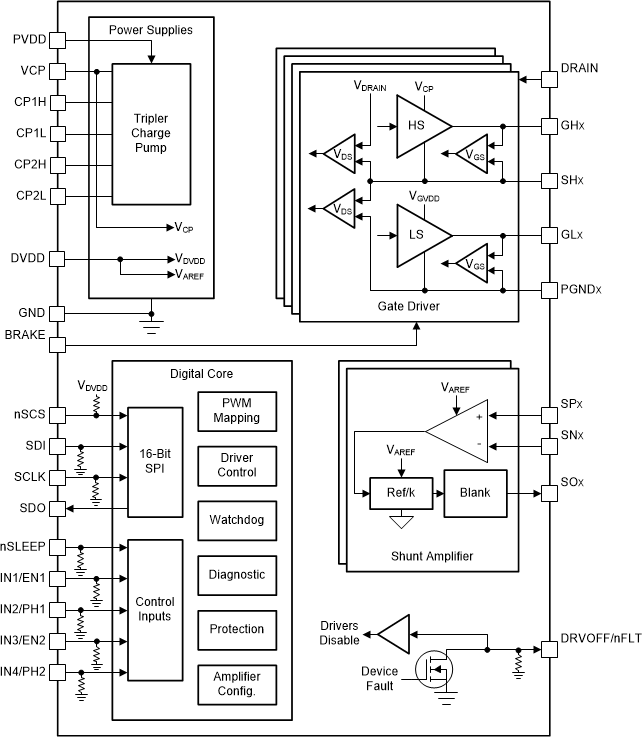

Figure 7-3 Block Diagram for DRV8714S-Q1 RHA PackageNote:
On the DRV8714-Q1 RHA package, the AREF pin is not present. The AREF power supply is derived from the DVDD pin.

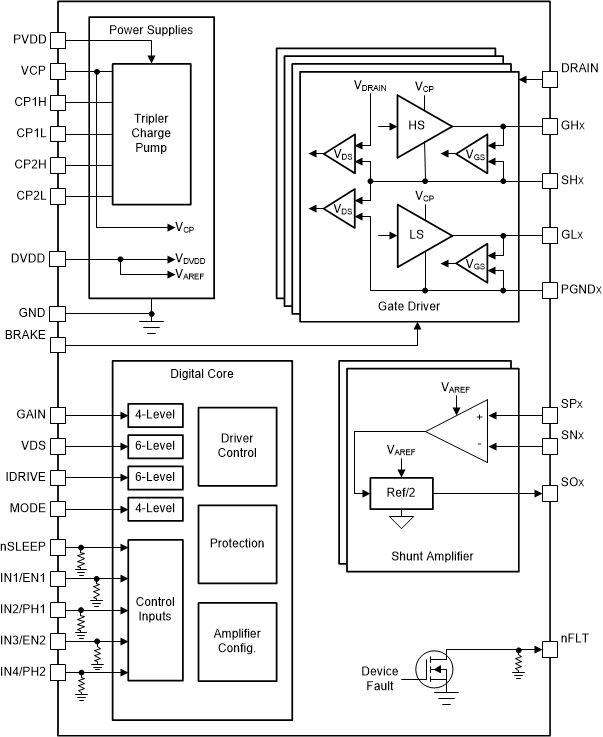

Figure 7-4 Block Diagram for DRV8714H-Q1 RHA PackageNote:
On the DRV8714-Q1 RHA package, the AREF pin is not present. The AREF power supply is derived from the DVDD pin.
