SPRAC21A June 2016 – June 2019 OMAP-L132 , OMAP-L138 , TDA2E , TDA2EG-17 , TDA2HF , TDA2HG , TDA2HV , TDA2LF , TDA2P-ABZ , TDA2P-ACD , TDA2SA , TDA2SG , TDA2SX , TDA3LA , TDA3LX , TDA3MA , TDA3MD , TDA3MV

3.2 System EDMA Observations

NOTE

On the TDA2xx and TDA2ex device, all transfer controllers yield identical performance for all transfer scenarios because both TCs have the same configuration, and most importantly the same FIFOSIZE for a given burst size.

EDMA channel parameters allow many different transfer configurations. Typical transfer configurations result in transfer controllers bursting the read write data in default burst size chunks, thereby, keeping the busses fully utilized. However, in some configurations, the TC issues less than optimally sized read and write commands (less than default burst size), reducing performance. To properly design a system, it is important to know which configurations offer the best performance for high-speed operations.

On TDA2xx and TDA2ex, there are two transfer controllers to move data between slave end points. The default configuration for the transfer controllers is shown in Table 13.

Table 13. Default Configuration for the Transfer Controllers

Name	Description	TC0	TC1
TCCFG[2:0] FIFOSIZE	Channel FIFO Size	1024 Bytes	1024 Bytes
TCCFG[5:4] BUSWIDTH	Data Transfer Bus Width	16 Bytes	16 Bytes
TCCFG[9:8] DSTREGDEPTH	Destination Register Depth	4 entries	4 entries
DBS (Default Burst Size)	Size of each data burst	Configurable	Configurable

The individual TC performance for paging and memory-to-memory transfers is essentially dictated by the TC configuration. In most scenarios, the FIFOSIZE and default burst size configuration for the TC have the most significant impact on the TC performance; the BUSWIDTH configuration is dependent on the device architecture and the DSTREGDEPTH values impact the number of in-flight transfers.

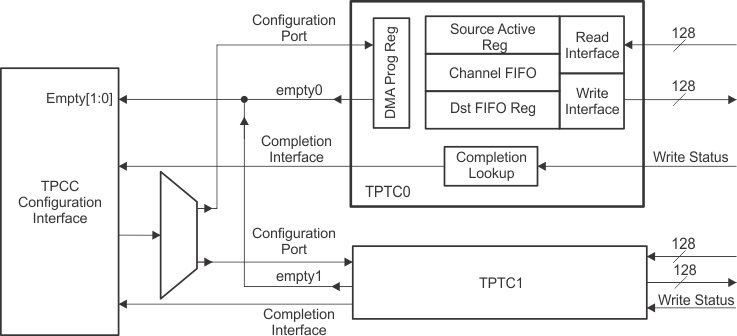

Figure 11. EDMA Third-party Transfer Controller (EDMA_TPTC) Block Diagram

The default burst size (DBS) can be controlled with the CTRL_CORE_CONTROL_IO_1 register in the TDA2xx and TDA2ex Control Module Registers, as shown in Table 14.

Table 14. CTRL_CORE_CONTROL_IO_1

Address offset	0x0000 0554
Physical Address	0x4A00 2554	Instance	CTRL_MODULE_CORE
Description	Register to configure some IP level signals
Type	RW

31	30	29	28	27	26	25	24	23	22	21	20	19	18	17	16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	0
RESERVED											MMU2_DISABLE	RESERVED			MMU1_DISABLE	RESERVED		TC1_DEFAULT_BURST_SIZE		RESERVED		TC0_DEFAULT_BURST_SIZE		RESERVED		GMII2_SEL		RESERVED		GMII1_SEL

Bits	Field Name	Description	Type	Reset
31:21	RESERVED	Reserved	R	0x0
20	MMU2_DISABLE	MMU2 DISABLE setting	RW	0x0
19:17	RESERVED	Reserved	R	0x0
16	MMU1_DISABLE	MMU1 DISABLE setting	RW	0x0
15:14	RESERVED	Reserved	R	0x0
13:12	TC1_DEFAULT_BURST_SIZE	EDMA TC1 DEFAULT BURST SIZE setting	RW	0x3
11:10	RESERVED	Reserved	R	0x0
9:8	TC0_DEFAULT_BURST_SIZE	EDMA TC0 DEFAULT BURST SIZE setting	RW	0x3
7:6	RESERVED	Reserved	R	0x0
5:4	GMII2_SEL	GMII2 selection setting	RW	0x0
3:2	RESERVED	Reserved	R	0x0
1:0	GMII1_SEL	GMII1 selection setting	RW	0x0

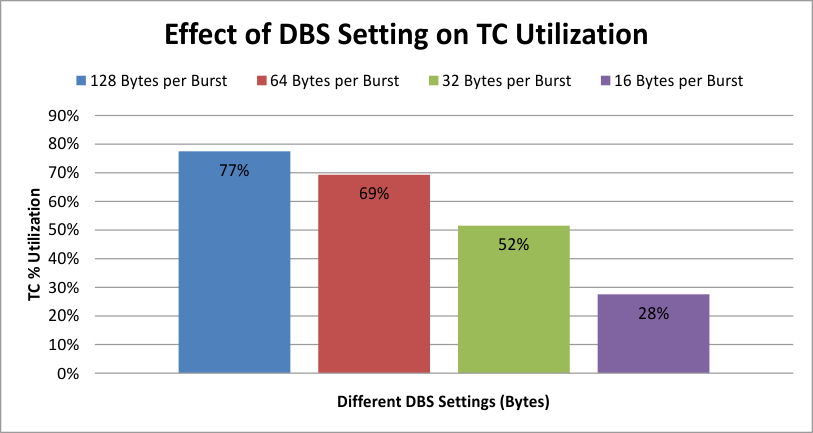

The effect of the DBS setting on the TC% utilization can be realized with the graph in Figure 12. The data transfer used to obtain these results is a DDR-to-DDR transfer of 16 MB. It is observed that the default setting of 128 bytes per burst generates the maximum TC utilization.

Figure 12. Effect of DBS on System EDMA TC Utilization

The TC read and write controllers in conjunction with the source and destination register sets are responsible for issuing optimally-sized reads and writes to the slave endpoints. An optimally-sized command is defined by the transfer controller default burst size (DBS).

The EDMA_TPTC attempts to issue the largest possible command size as limited by the DBS value or the ABCNT_n[15:0] ACNT and ABCNT_n[31:16] BCNT value of the TR. The EDMA_TPTC obeys the following rules:

The read and write controllers always issue commands less than or equal to the DBS value.
The first command of a 1D transfer command always aligns the address of subsequent commands to the DBS value.

Table 15 lists the TR segmentation rules that are followed by the EDMA_TPTC. In summary, if the ABCNT_n[15:0] ACNT value is larger than the DBS value, then the EDMA_TPTC breaks the ABCNT_n[15:0] ACNT array into DBS-sized commands to the source and destination addresses. Each ABCNT_n[31:16] BCNT number of arrays are then serviced in succession.

For BCNT arrays of ACNT bytes (that is, a 2D transfer), if the ABCNT_n[15:0] ACNT value is less than or equal to the DBS value, then the TR may be optimized into a 1D-transfer in order to maximize efficiency. The optimization takes place if the EDMA_TPTC recognizes that the 2D-transfer is organized as a single dimension (ABCNT_n[15:0] ACNT == BIDX_n) and the ACNT value is a power of 2.

Table 15. System EDMA TC Optimization Rules

ACNT ≤ DBS	ACNT is Power of 2	BIDX = ACNT	BCNT ≤ 1023	SAM/DAM = Increment	Description
Yes	Yes	Yes	Yes	Yes	Optimized
No	X	X	X	X	Not Optimized
X	No	X	X	X	Not Optimized
X	X	No	X	X	Not Optimized
X	X	X	No	X	Not Optimized
X	X	X	X	No	Not Optimized

In summary, Table 16 lists the factors that affect the EDMA performance.

Table 16. Factors Affecting System EDMA Performance

Factors	Impact	General Recommendation
Source/Destination Memory	The transfer speed depends on SRC/DST memory bandwidth.	Know the nature of the source and destination memory, specifically the frequency of operation and the bus width.
Transfer Size	Throughput is less for small transfers due to transfer overhead and latency.	Configure EDMA for larger transfer size as throughput, small transfer size is dominated by transfer overhead.
A-Sync/AB-Sync	Performance depends on the number of TRs (Transfer Requests). More TRs would mean more overhead.	Using AB-Sync transfers gives better performance than chaining A-Sync transfers.
Source/Destination Bidx	Optimization will not be done if BIDX is not equal to ACNT value optimization guidelines.	Whenever possible, follow the EDMA TC optimization guidelines. See the TPTC spec for optimization details.
Queue TC Usage	Performance is the same for both TCs.	Both TCs have the same configuration and show the same performance.
Burst Size	Decides the largest possible read/write command submission by TC.	The default burst size for all transfer controllers is 128 bytes. This also results in most efficient transfers/throughput in most memory-to-memory transfer scenarios.
Source/Destination Alignment	Slight performance degradation if source/destination are not aligned to Default Burst Size (DBS) boundaries.	For smaller transfers, as much as possible, source and destination addresses should be aligned across DBS boundaries.
