7.1 Propagation Delay, Inverting, and Noninverting Configuration
Figure 7-1 shows the propagation delay for noninverting configurations. Figure 7-2 shows the propagation delay with the inverting configuration. These figures also demonstrate the method used to measure the rise (tr) and fall (tf) times.

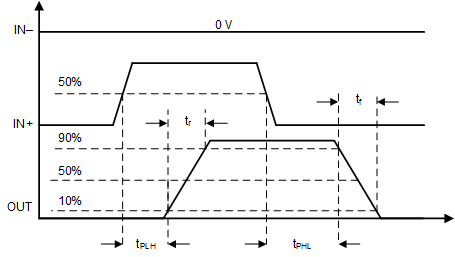

Figure 7-1 Propagation Delay,
Noninverting Configuration

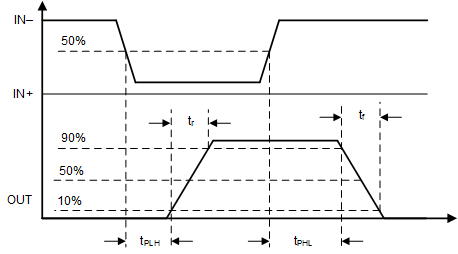

Figure 7-2 Propagation Delay, Inverting Configuration
