9.2 Typical Application
The circuits in Figure 9-1 and Figure 9-2 show a typical application for driving IGBTs.

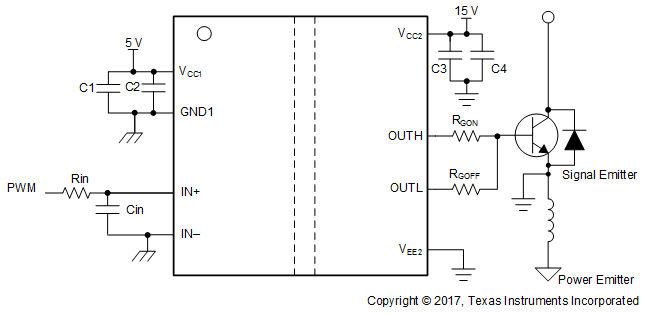

Figure 9-1 Typical
Application Circuit for UCC5350SB-Q1 to
Drive IGBT

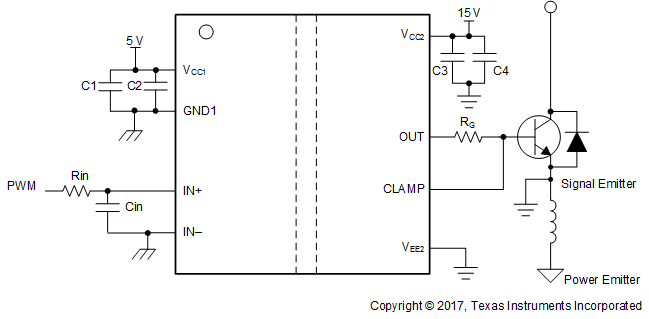

Figure 9-2 Typical
Application Circuit for UCC5350MC-Q1 to Drive
IGBT
