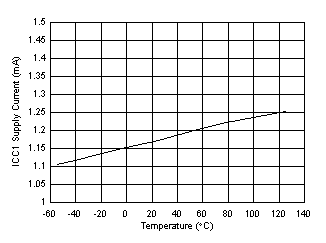

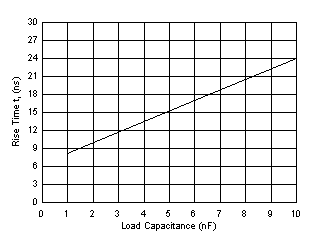

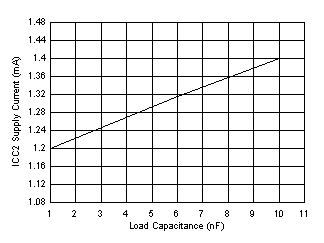

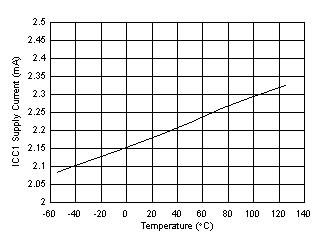

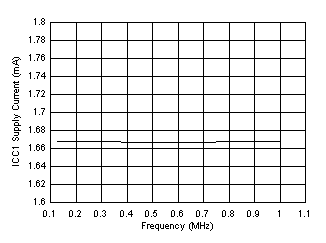

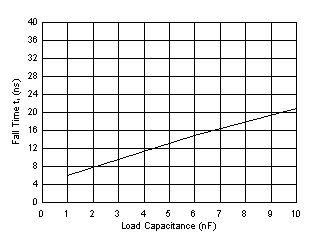

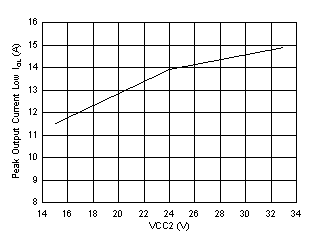

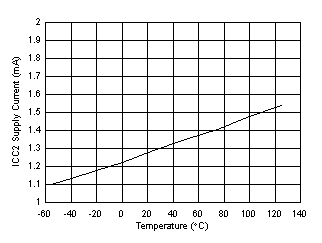

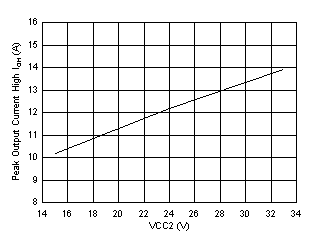

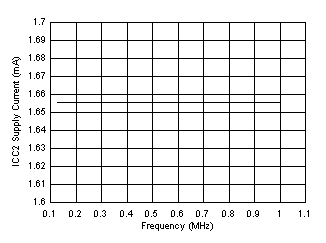

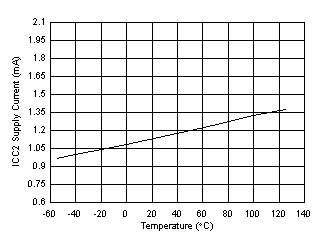

6.14 Typical Characteristics
VCC1 = 3.3 V or 5 V, 0.1-μF capacitor from VCC1 to GND1, VCC2= 15 V, 1-μF capacitor from VCC2 to VEE2, CLOAD = 1 nF, TJ = –40°C to +125°C, (unless otherwise noted)
| CLOAD = 150 nF |
| IN+ = L | IN– = H |
| Duty Cycle = 50% | T = 25°C |
| IN+ = H | IN– = L |
| fSW = 1 kHz |

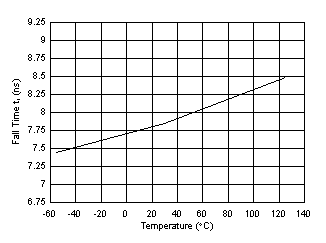

Figure 6-15 Fall
Time vs Temperature

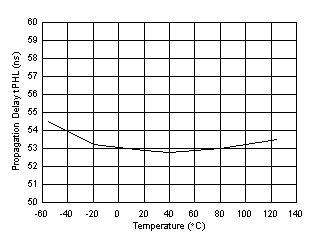

Figure 6-17 Propagation Delay tPHL vs Temperature
| fSW = 1 kHz | RGH = 0 Ω | RGL = 0 Ω |

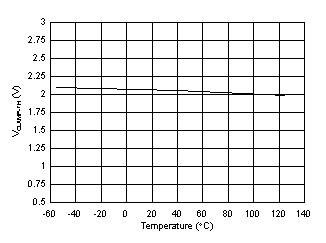

Figure 6-21 VCLAMP-TH vs Temperature
| CLOAD = 150 nF |
| IN+ = H | IN– = L |
| IN+ = L | IN– = H |
| Duty Cycle = 50% | T = 25°C |

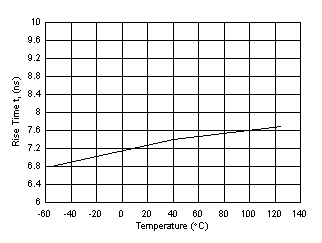

Figure 6-14 Rise
Time vs Temperature

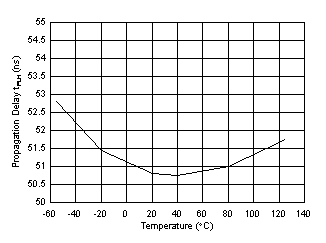

Figure 6-16 Propagation Delay tPLH vs Temperature
| fSW = 1 kHz | RGH = 0 Ω | RGL = 0 Ω |

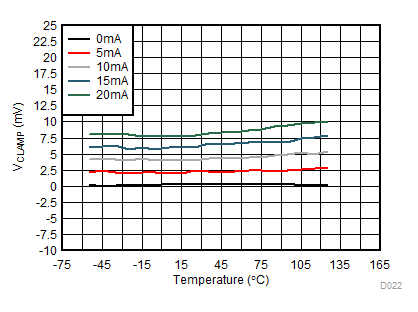

Figure 6-20 VCLAMP vs Temperature
