7.1.1 CMTI Testing
Figure 7-3 and Figure 7-4 are simplified diagrams of the CMTI testing configuration.

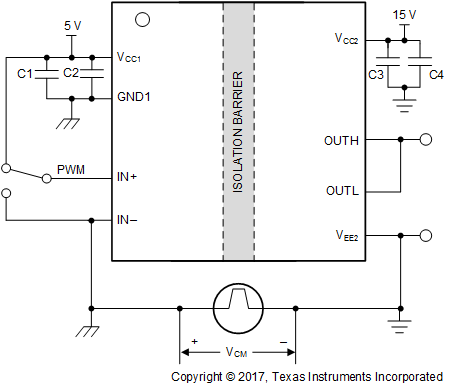

Figure 7-3 CMTI Test Circuit for
Split Output (UCC5350SB)

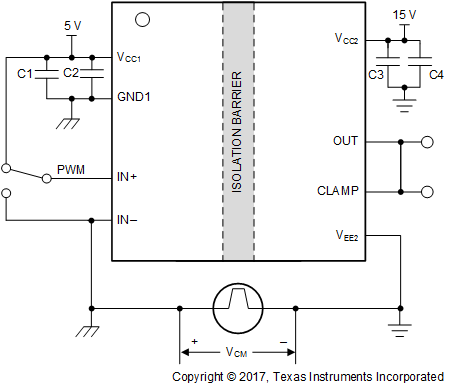

Figure 7-4 CMTI Test Circuit for
Miller Clamp (UCC5350MC)
