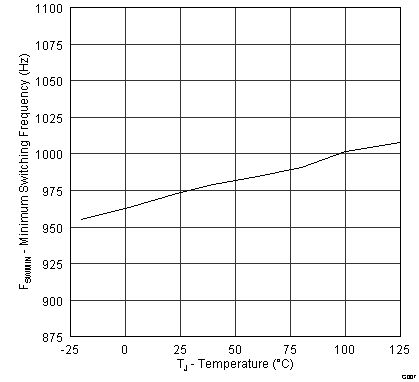

6.7 Typical Characteristics
At VDD = 25 V, unless otherwise noted.
Figure 6-1 Bias Supply Current vs. Bias Supply Voltage
Figure 6-3 VS Regulation Voltage vs. Temperature

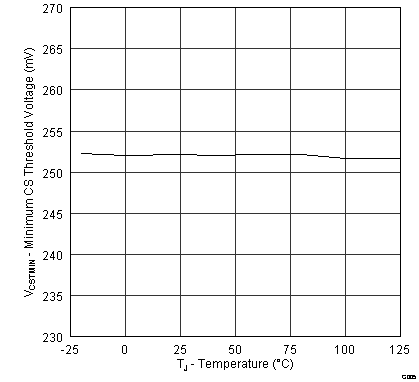

Figure 6-5 Minimum CS Threshold Voltage vs. Temperature

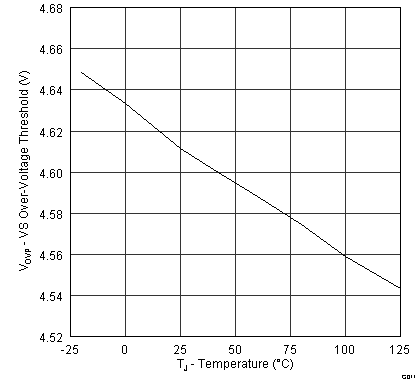

Figure 6-9 Overvoltage Threshold vs. Temperature

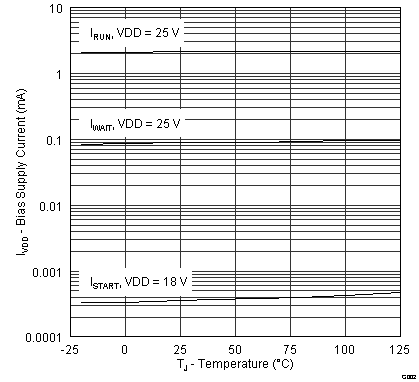

Figure 6-2 Bias Supply Current vs. Temperature

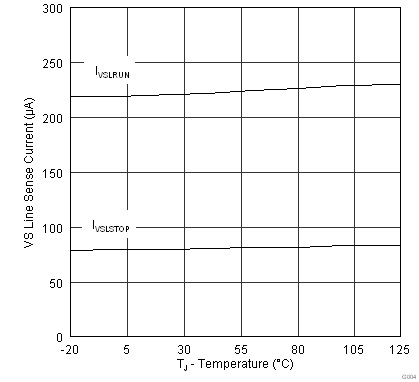

Figure 6-4 Line-Sense Current vs. Temperature

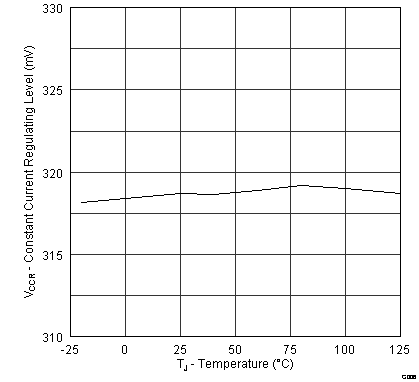

Figure 6-6 Constant-Current Regulating Level vs. Temperature

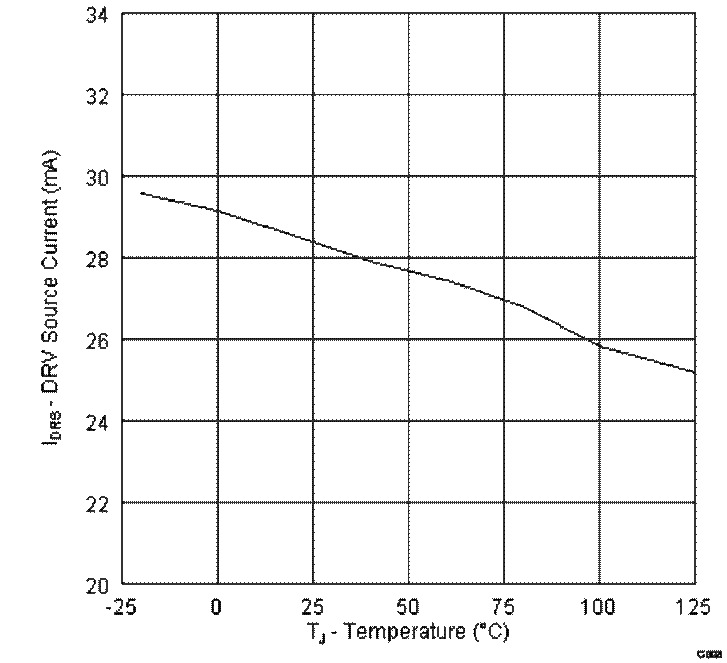

| VDRV = 8 V, VVDD = 9 V |
