8.2.3 Application Curves

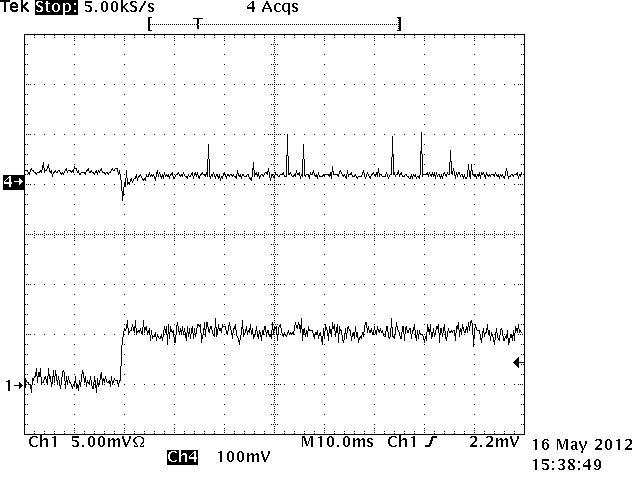

| CH1 = IO, CH4 = VO With a 5-V Offset |

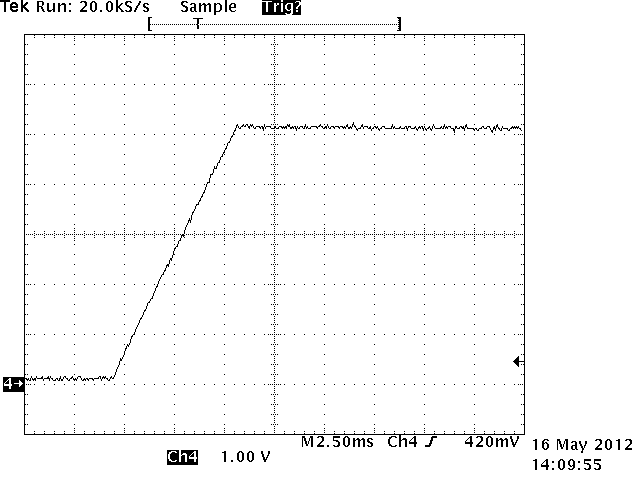

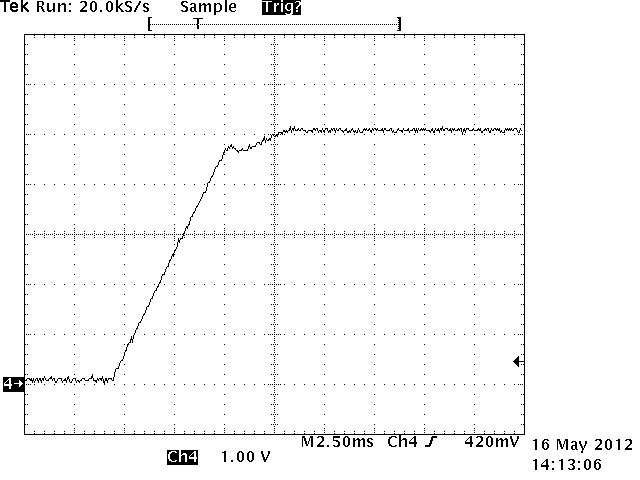

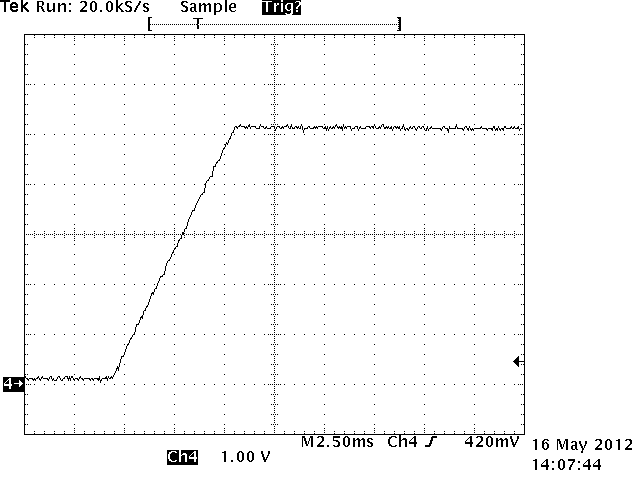

| CH4 = VO, Output voltage at EVM output | ||
| CH2 = VO, Output voltage measured at the end of the 3M of cable in parallel with a 1-uF capacitor. The output voltage has less than 50 mV of output ripple at the end of the cable. |

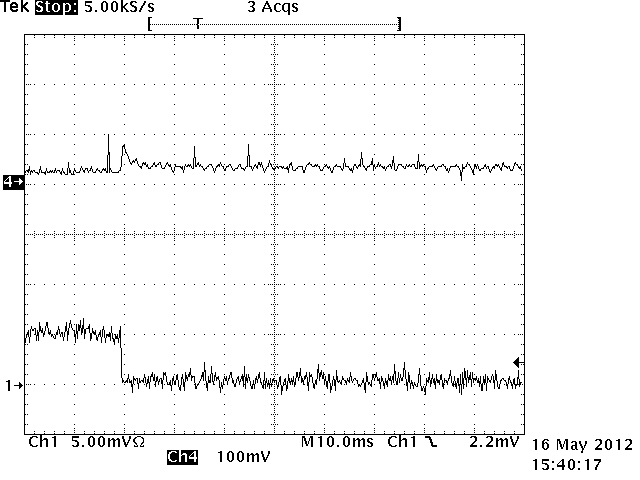

| CH1 = IO, CH4 = VO With a 5-V Offset |
