8.2.5 Design Example 4
This design example describes a 3.3-VIN, LP DDR3 or DDR4 configuration.

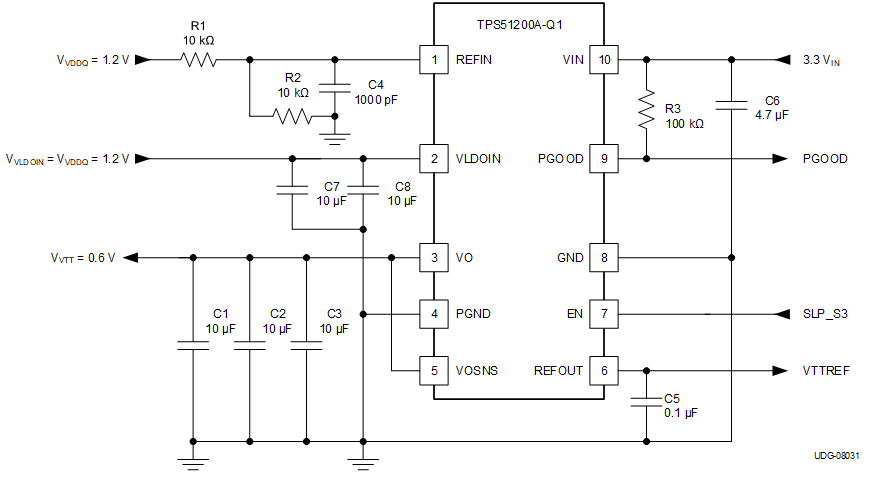

Figure 29. 3.3-VIN, LP DDR3 or DDR4 Configuration
