ZHCSMU9A December 2020 – September 2021 TAS2764
PRODUCTION DATA

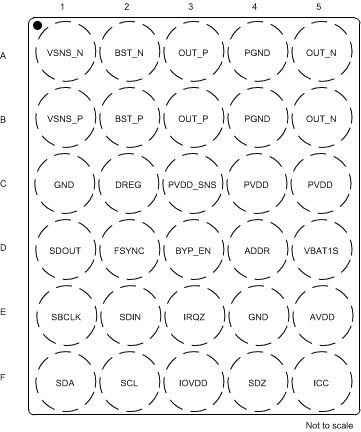

Figure 5-1 YBH Package30-Ball DSBGATop View| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| ADDR | D4 | I | Address detect pin. Resistor value at this pin selects the I2C address. See Section 8.3.1. Minimize capacitive loading on this pin and do not connect to any other load. |
| AVDD | E5 | P | Analog power input. Connect to 1.8V supply and decouple to GND with a capacitor. |
| BST_N | A2 | P | Class-D negative bootstrap. Connect a capacitor between BST_N and OUT_N. |
| BST_P | B2 | P | Class-D positive bootstrap. Connect a capacitor between BST_P and OUT_P. |
| DREG | C2 | P | Digital core voltage regulator output. Bypass to GND with a capacitor. Do not connect to external load. |
| FSYNC | D2 | I | TDM Frame Sync. |
| GND | E4 | P | Analog ground. Connect to PCB ground plane. |
| C1 | |||
| ICC | F5 | IO | Interchip communication pin used to transmit gain alignment. |
| IOVDD | F3 | P | Digital IO Supply. Connect to 1.2V or 1.8 V supply and decouple with a capacitor to GND. |
| IRQZ | E3 | O | Open drain, active low interrupt pin. Pull up to IOVDD with resistor if optional internal pull up is not used. |
| BYP_EN | D3 | O | Low voltage signaling pin with open drain output. It can be used to enable/disable an external converter. |
| OUT_N | B5 | O | Class-D negative output. |
| A5 | |||
| OUT_P | B3 | O | Class-D positive output. |
| A3 | |||
| PGND | B4 | P | Class-D ground. Connect to PCB ground plane. |
| A4 | |||
| SBCLK | E1 | I | TDM Serial Bit Clock. |
| SCL | F2 | I | I2C Clock Pin. Pull up to IOVDD with a resistor. |
| SDA | F1 | IO | I2C Data Pin. Pull up to IOVDD with a resistor. |
| SDIN | E2 | I | TDM Serial Data Input. |
| SDOUT | D1 | IO | TDM Serial Data Output. |
| SDZ | F4 | I | Active low hardware shutdown. |
| PVDD | C4 | P | Class-D power supply input. Decouple with a capacitor. |
| C5 | |||
| PVDD_SNS | C3 | I | PVDD remote sense pin. |
| VBAT1S | D5 | P | Single-cell battery supply input. Decouple with a capacitor. |
| VSNS_N | A1 | I | Voltage Sense negative input. Connect to one speaker input. |
| VSNS_P | B1 | I | Voltage Sense positive input. Connect to the other speaker input. |
