7.2.3.2.13 Critical Components for Design

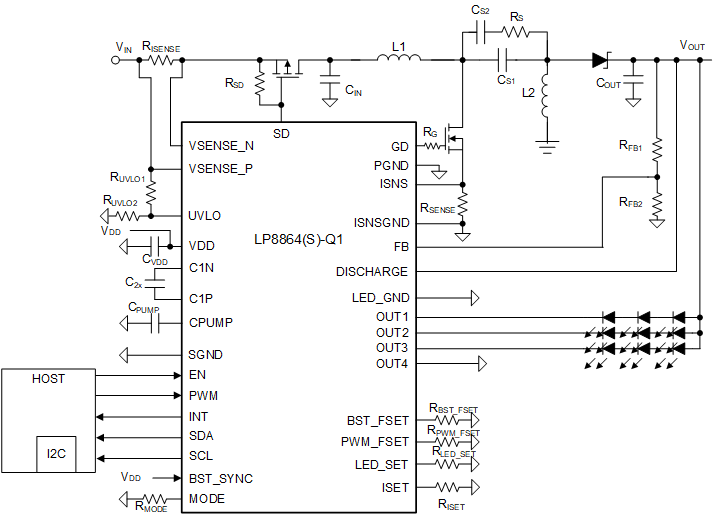

shows the critical part of circuitry: SEPIC components, the LP8864-Q1 internal charge pump for gate-driver powering, and powering/grounding of LP8864-Q1. Schematic example is shown below.
Figure 7-7 SEPIC Mode with
Three LEDs in SeriesTable 7-7 Recommended Components for SEPIC
Design Example
| REFERENCE DESIGNATOR | DESCRIPTION | NOTE |
|---|---|---|
| RISENSE | 20mΩ, 1W | Input current sensing resistor |
| RSD | 20kΩ, 0.1W | Power-line FET gate pullup resistor |
| RSENSE | 50mΩ, 1W | Boost current sensing resistor |
| RG | 15Ω, 0.1W | Gate resistor to control the rising/falling time of nMOSFET for EMC |
| RUVLO1 | 76.8kΩ, 0.1W | These UVLO resistor settings set the VIN_UVLO rising voltage at 3.75 V, VIN_UVLO falling voltage at 3.35V |
| RUVLO2 | 20.5kΩ, 0.1W | |
| RFB2 | 60kΩ, 0.1W | Bottom feedback divider resistor |
| RFB1 | 330kΩ, 0.1W | Top feedback divider resistor |
| RBST_FSET | 124kΩ, 0.1W | Boost frequency set resistor (2200kHz) |
| RISET | 38.7 kΩ, 0.1W | Current set resistor (80mA per channel) |
| RPWM_FSET | 4.75k?, 0.1W | Output PWM frequency set resistor (305Hz PWM frequency) |
| RMODE | 3.92k?, 0.1W | Mode resistor (Phase-Shift PWM mode with 0x3B I2C address) |
| RLED_SET | 4.75k?, 0.1W | LED_SET resistor (3 channels configuration) |
| CPUMP | 10μF, 10V ceramic | Charge-pump output capacitor |
| C2X | 2.2μF, 10V ceramic | Flying capacitor |
| CVDD | 4.7μF + 0.1μF, 10V ceramic | VDD bypass capacitor |
| CIN | 1 × 33μF, 50V electrolytic + 1 × 10-μF, 50V ceramic | Boost input capacitor |
| COUT | 1 × 33μF, 50V electrolytic + 1 × 10-μF, 50V ceramic | Boost output capacitor |
| CS1 | 10μF, 50V ceramic | SEPIC coupling capacitor |
| CS2 | 33μF, 50V electrolytic | SEPIC coupling capacitor |
| RS | 2Ω, 0.125W | SEPIC resistor |
| L1 | 4.7μH saturation current 3A | SEPIC inductor |
| L2 | 4.7μH saturation current 3A | SEPIC inductor |
| D1 | 50V 10A Schottky diode | SEPIC Schottky diode |
| Q1 | 60V, 25A nMOSFET | SEPIC nMOSFET |
| Q2 | 60V, 30A pMOSFET | Power-line FET |
