6.3.8.4 Phase-Shift PWM Mode

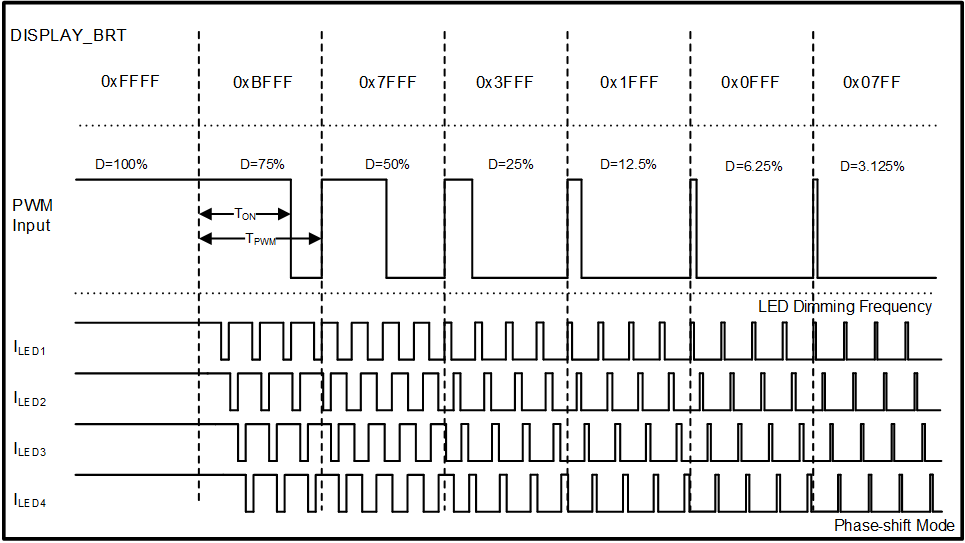

In Phase-Shift PWM mode, all current active channels are turned on and off at LED dimming frequency with a constant delay. However, the number of used channels or channel groups determine the phase delay time between two neighboring channels as shown in Figure 6-10.
Figure 6-10 Phase-Shift Dimming Diagram
