5.8 Typical Characteristics

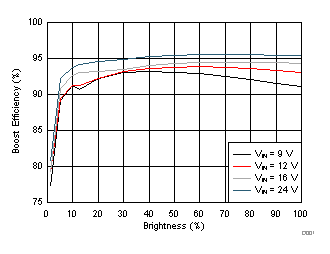

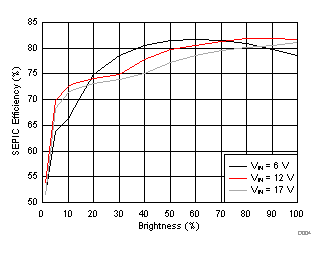

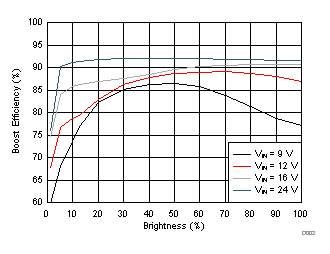

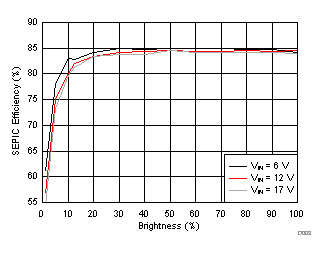

Unless otherwise specified: CIN = COUT = 2 × 10μF ceramic and 2 × 33μF electrolytic, VDD = 3.3V, charge pump enabled, TA = 25°C
| ?SW = 303kHz | 8 LEDs/string | 150mA/string |
| L1 = 22μH | 6 strings |
| ?SW = 303kHz | 2 LEDs/string | 15mA/string |
| L1 = 10μH, L2 = 15μH | 6 strings | |

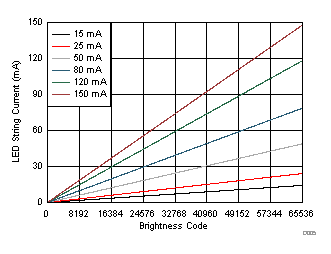

Figure 5-6 Current Linearity
| ?SW = 2.2MHz | 8 LEDs/string | 150mA/string |
| L1 = 10μH | 6 strings |
| ?SW = 2.2MHz | 2 LEDs/string | 150mA/string |
| L1 = L2 = 4.7μH | 6 strings |

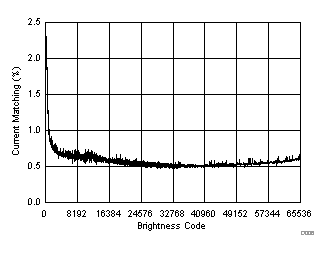

Figure 5-7 Current Matching
