6.3.8.6 Direct PWM Mode
In direct PWM mode, all active channels are turned on and off and are synchronized with the input PWM signal.

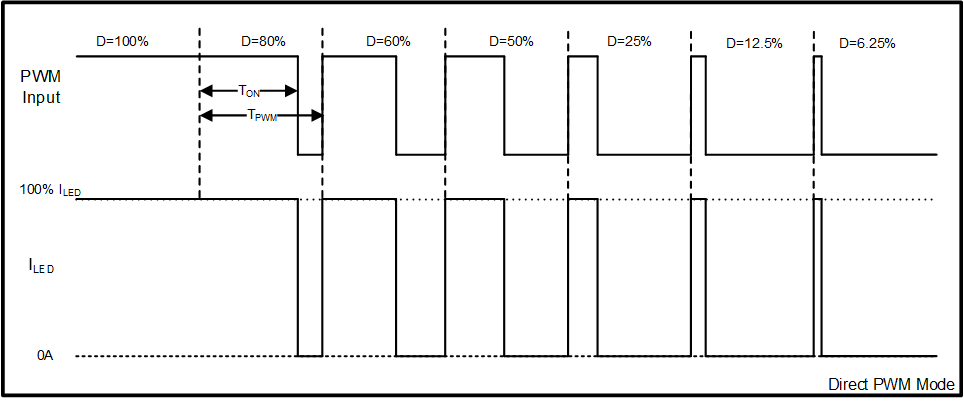

Figure 6-12 Direct PWM
Dimming Diagram
