3 說明
LP8864-Q1 是一款具有升壓控制器的汽車級高效 LED 驅動器。四個高精度電流阱支持根據使用的通道數自動調整相移。可通過 I2C 接口或 PWM 輸入對 LED 亮度進行全局控制。
升壓控制器基于 LED 電流阱余量電壓進行自適應輸出電壓控制。該特性可在所有條件下將升壓電壓調節到能夠滿足需要的最低水平，從而更大限度降低功耗。憑借寬范圍可調頻率，LP8864-Q1 可避免 AM 無線電頻段的干擾。
LP8864-Q1 支持內置混合 PWM 調光和模擬電流調光，可降低 EMI、延長 LED 使用壽命并提高總光學效率。
器件信息
| 器件型號(1) | 封裝 | 本體尺寸（標稱值） |
|---|---|---|
| LP8864-Q1 | HTSSOP (38) | 9.70mm × 4.40mm |
| QFN (32) | 5mm × 5mm |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

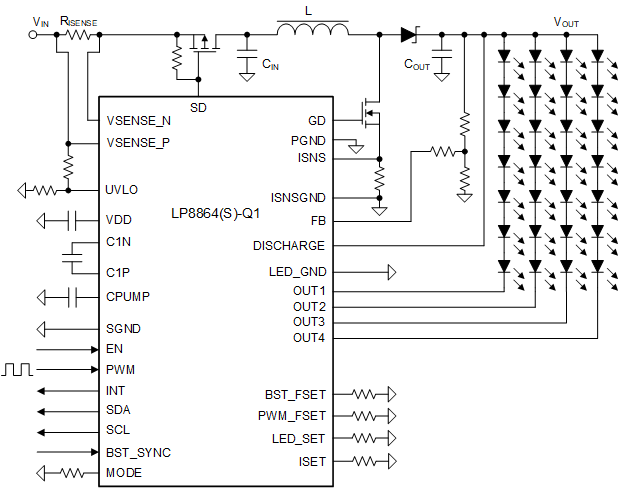

簡化版原理圖
