8.5.1 Dynamic Dead Time Adjustment

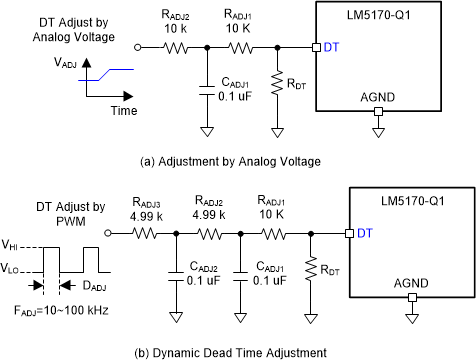

In addition to a fixed dead time programming by RDT, the dead time can be dynamically adjusted either by applying an analog voltage or a PWM signal as shown in Figure 8-27. Varying the analog voltage or the duty ratio of the PWM signal will adjust the DT programming. For analog adjustment, a single stage RC filter is recommended to filter out any possible noise. For PWM adjustment, a two-stage RC filter is recommended to minimize the ripple voltage resulted on the DT pin.
Figure 8-27 Dynamic Dead Time AdjustmentWhen an analog voltage is applied, the resulted dead time is determined by Equation 19:
where
- VADJ is the analog voltage used to adjust the dead time
When a PWM signal is applied, the resulted dead time is determined by Equation 20:
where
- VHI and VLO are the high and low voltage levels of the PWM signal, respectively,
- DADJ is the duty factor of the PWM signal.
