9.1.1.2 One to Eight Phase Programming
Figure 9-2 and Table 9-1 show a typical logic control signals and external clock requirements to run an eight phase system
Table 9-1 Multiphase Programming
| 1Φ | 2Φ | 3Φ | 4Φ | 6Φ | 8Φ | |
|---|---|---|---|---|---|---|
| A7 | 0 | 0 | 0 | 0 | 0 | 1 |
| A6 | 0 | 0 | 0 | 0 | 0 | 1 |
| A5 | 0 | 0 | 0 | 0 | 1 | 1 |
| A4 | 0 | 0 | 0 | 0 | 1 | 1 |
| A3 | 0 | 0 | 0 | 1 | 1 | 1 |
| A2 | 0 | 0 | 1 | 1 | 1 | 1 |
| A1 | 0 | 1 | 1 | 1 | 1 | 1 |
| A0 | 1 | 1 | 1 | 1 | 1 | 1 |
| OPT (B0) | 1 | 1 | 0 | 1 | 1 | 1 |
| SYNC (C0) | — | — | — | — | 0° | 0° |
| C1 | — | — | — | — | 60° | 45° |

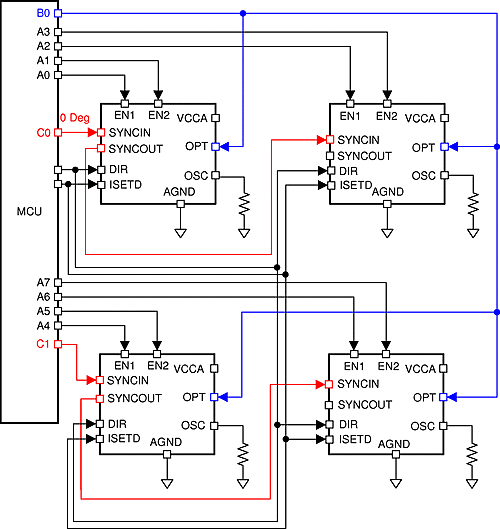

Figure 9-2 Eight Phase Configuration
