7.6 Typical Characteristics
VVIN = 48 V, VVCC = 10 V, VUVLO = 3.3 V, TJ = 25°C, unless otherwise stated.
| VUVLO = 0 V |

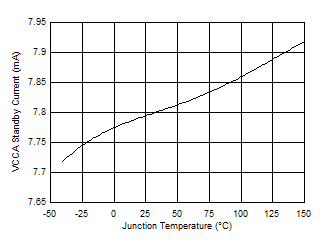

Figure 7-3 VCCA Standby Current vs Temperature
| ROSC = 40.2 kΩ |

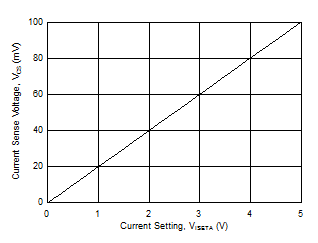

Figure 7-7 Regulated VCS Voltage vs ISETA Voltage

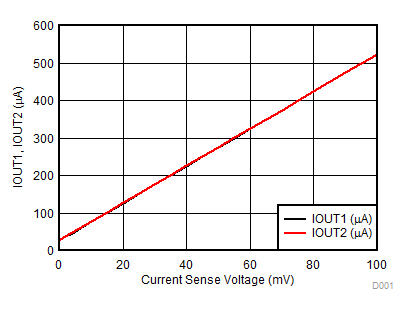

Figure 7-9 IOUT1/2 Current Monitor vs VCS Voltage

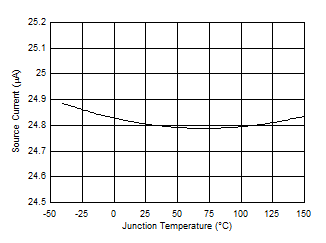

Figure 7-11 IPK Current Source vs Temperature

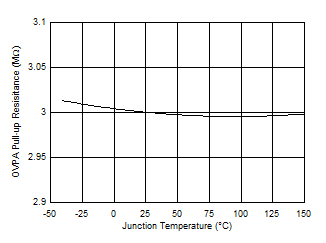

Figure 7-13 OVPA Pull-up Resistance vs Temperature
| FSW = 100 kΩ |

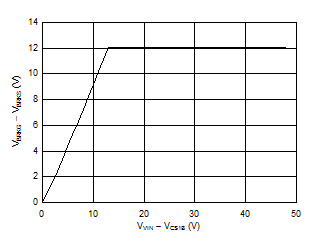

Figure 7-17 [VBRKG – VBRKS] vs [VVIN – VBRKG] Voltage
| VUVLO = 0 V |

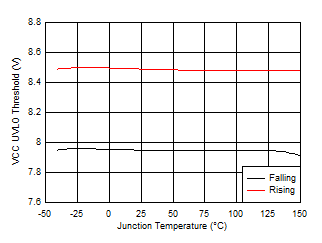

Figure 7-4 VCC UVLO Threshold vs Temperature
Figure 7-6 IOUT1/2 Current Monitor Accuracy vs VCS
| VISETA = 2.5 V |
| VCS = 50 mV |

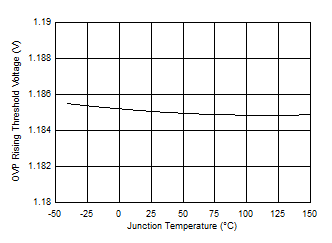

Figure 7-12 OVP Reference Voltage vs Temperature

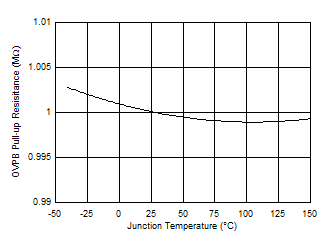

Figure 7-14 OVPB Pull-up Resistance vs Temperature
| VDT = VVCC |

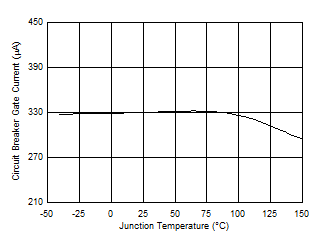

Figure 7-18 Circuit Breaker Gate Current vs Temperature
