6.7 Typical Characteristics

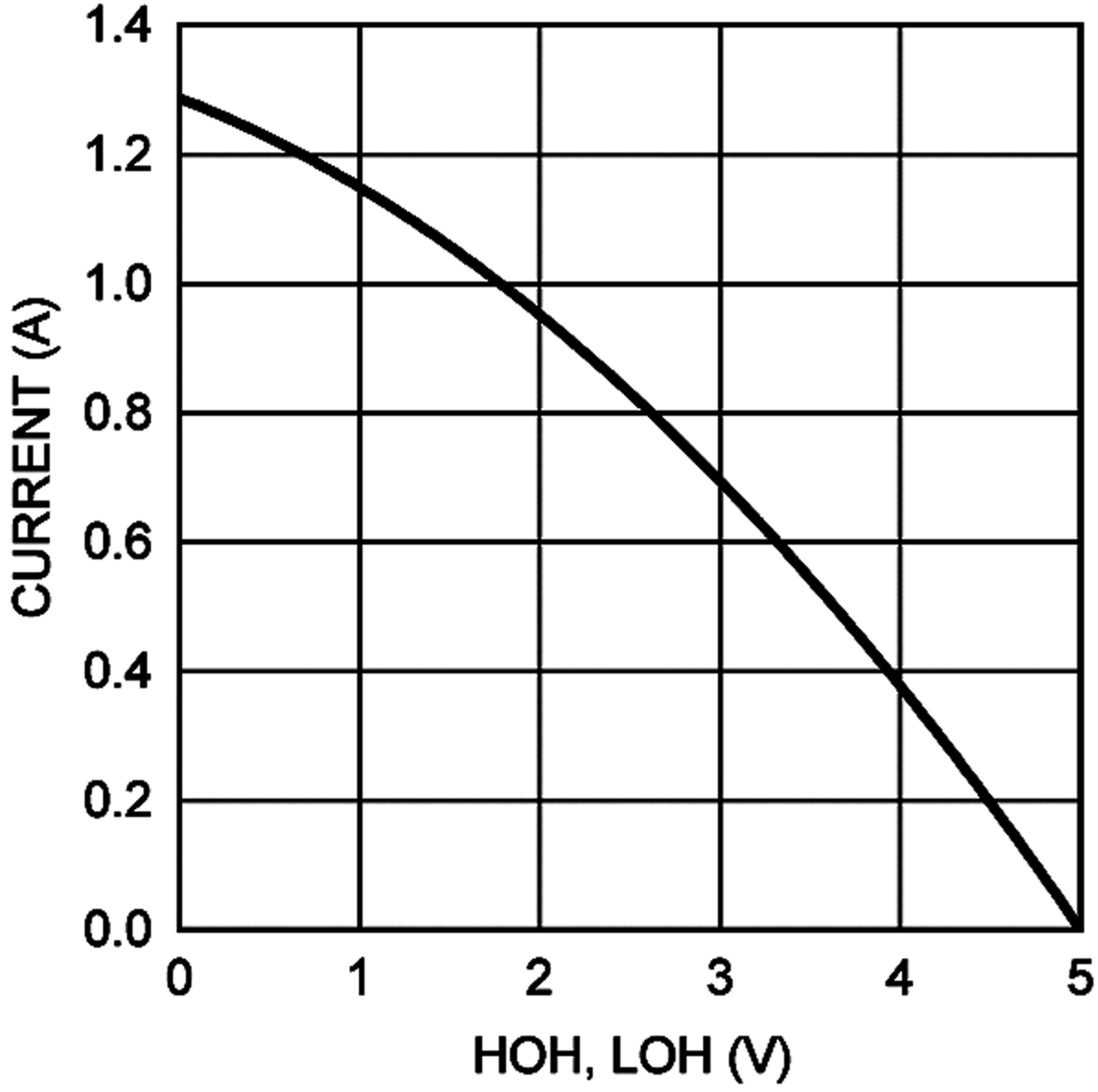

Figure 2. Peak Source Current vs Output Voltage

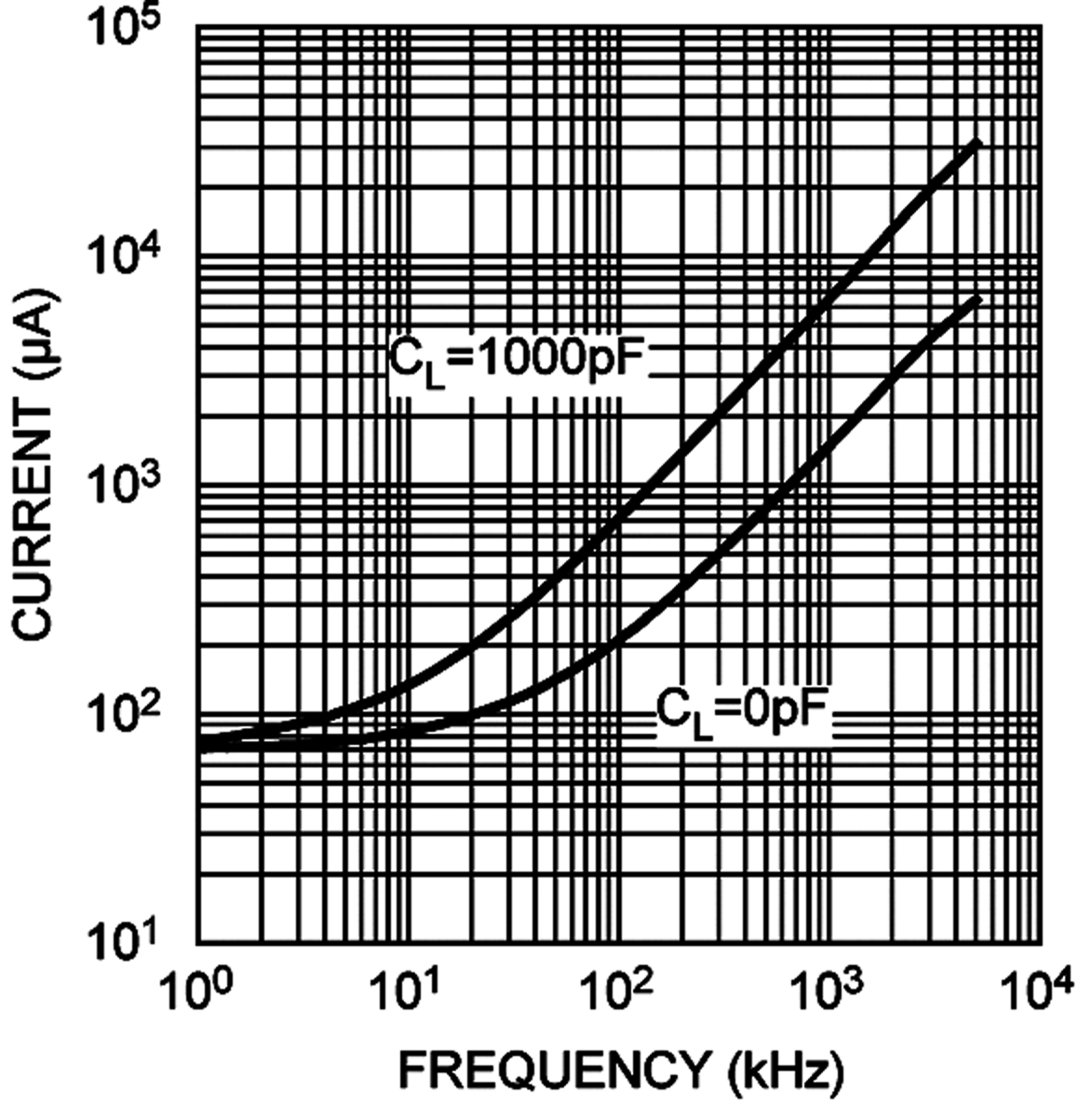

Figure 4. IDDO vs Frequency

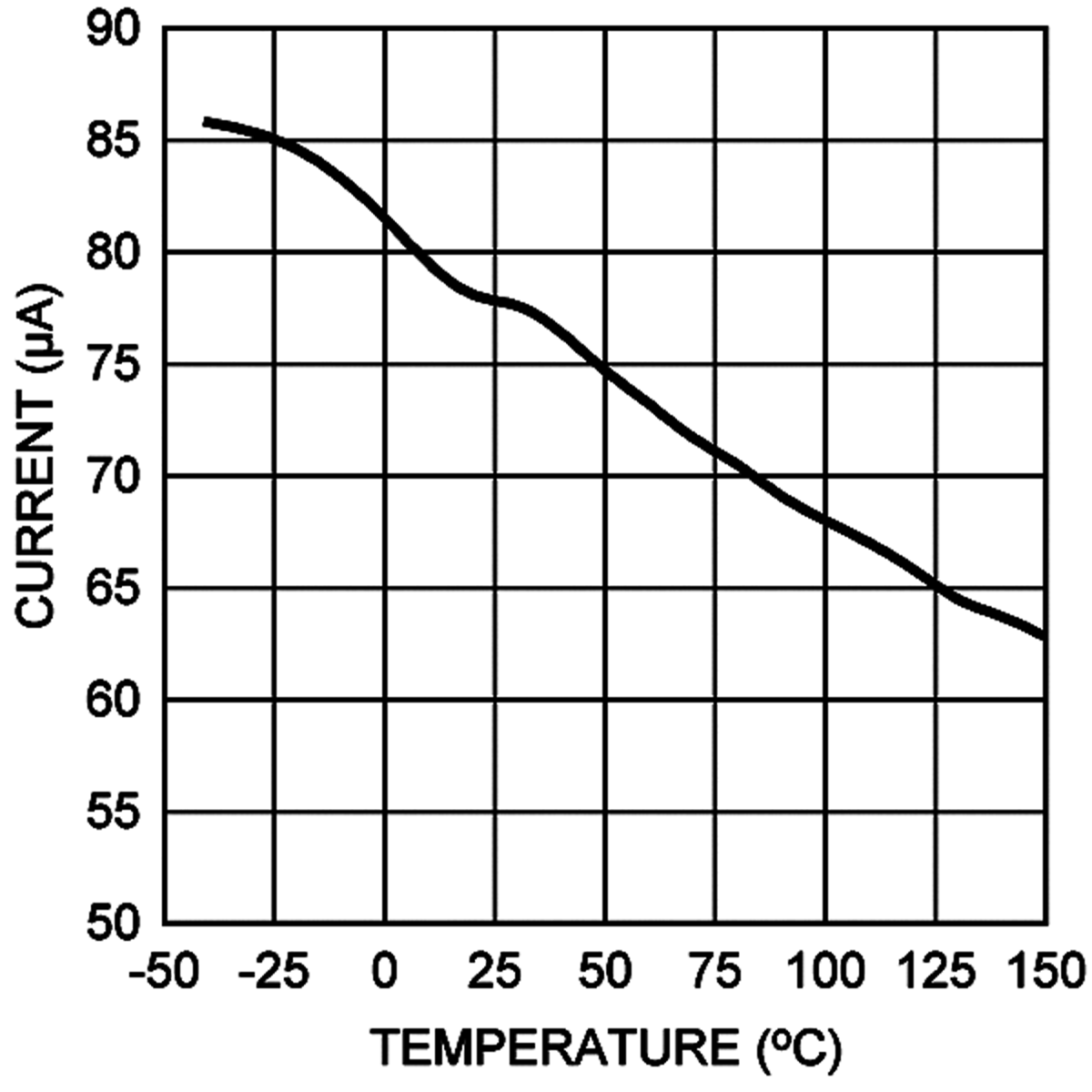

Figure 6. IDD vs Temperature
Figure 8. UVLO Rising Thresholds vs Temperature

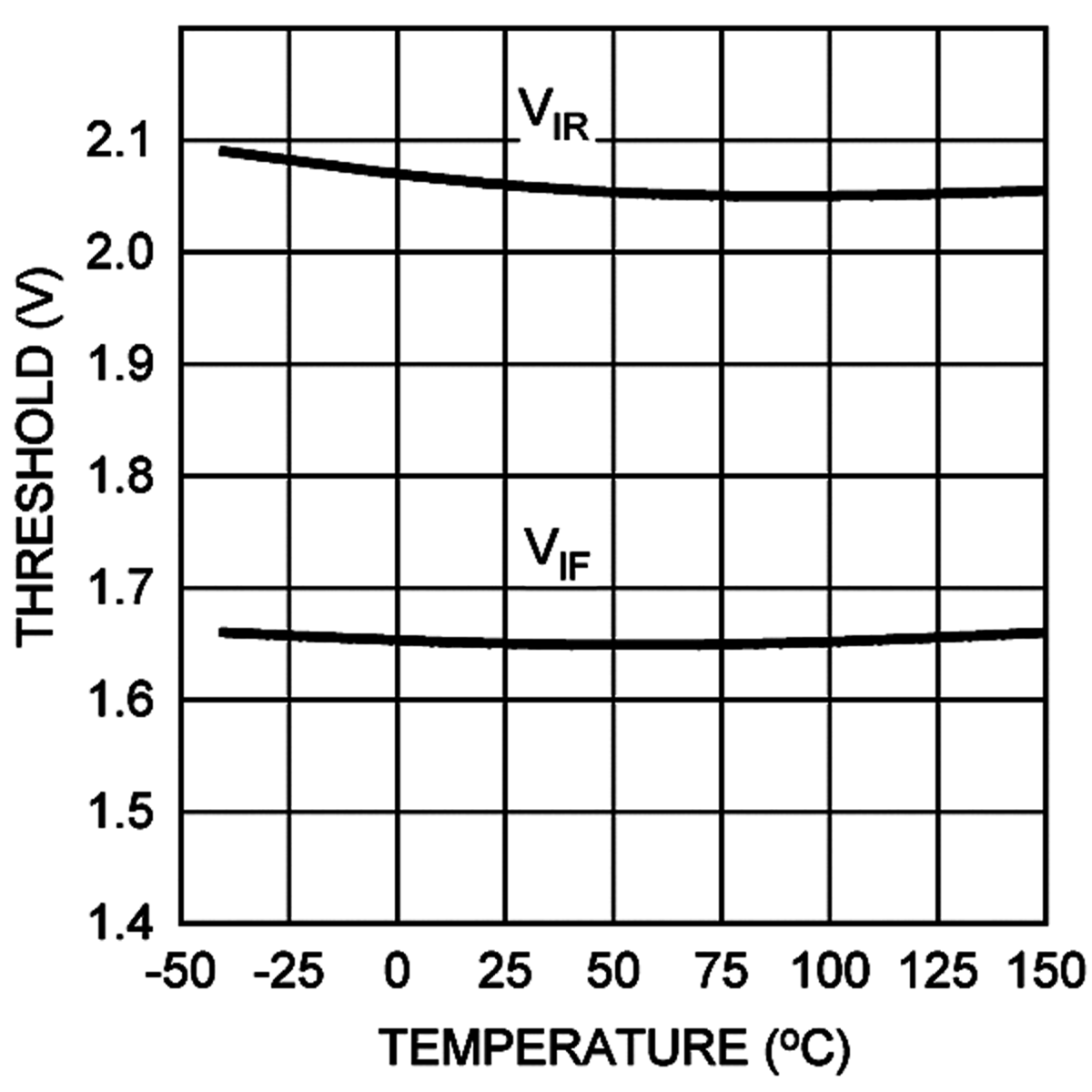

Figure 10. Input Thresholds vs Temperature

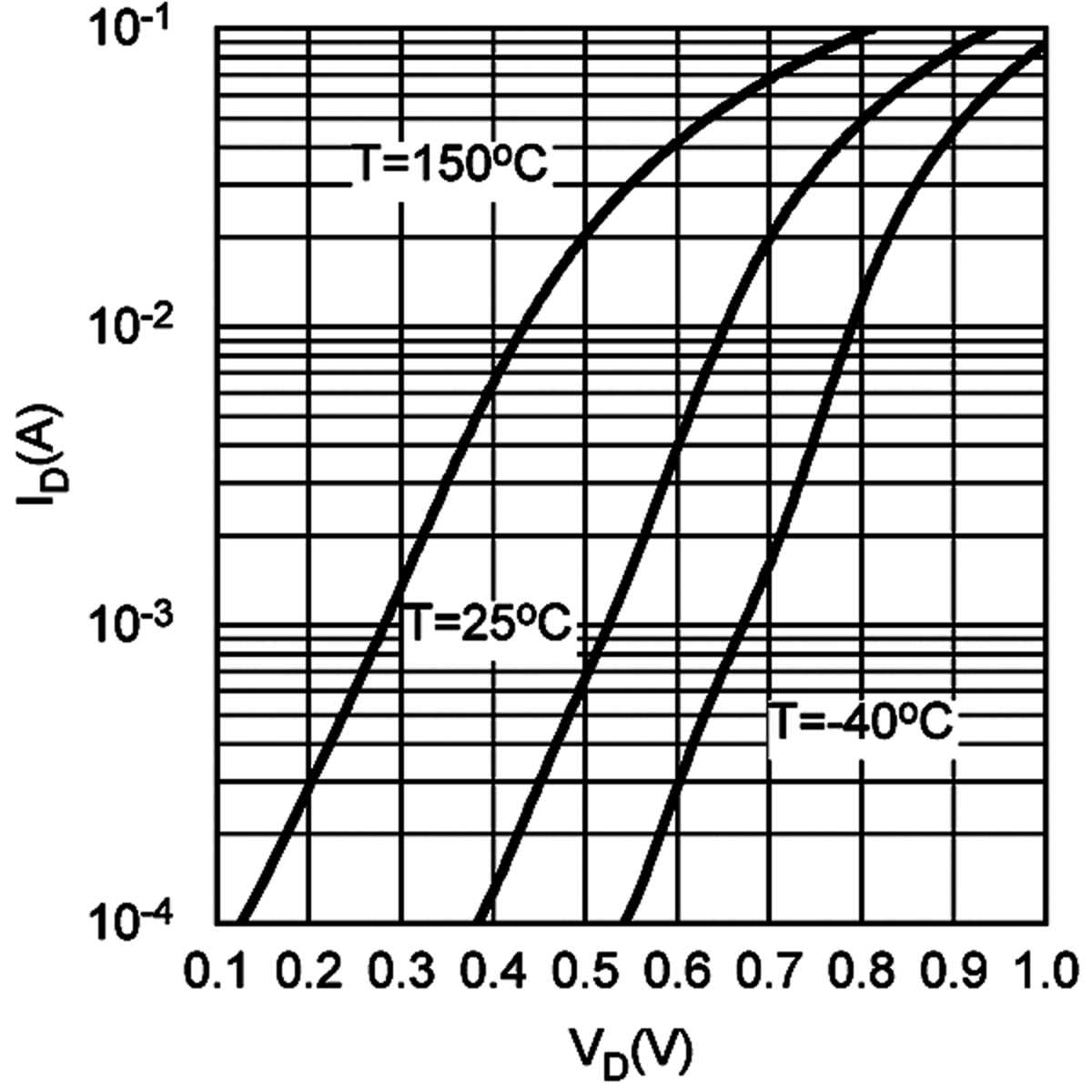

Figure 12. Bootstrap Diode Forward Voltage
| Note: Unless otherwise specified, | ||
| VDD = VHB = 5 V, VSS = VHS = 0 V. | ||

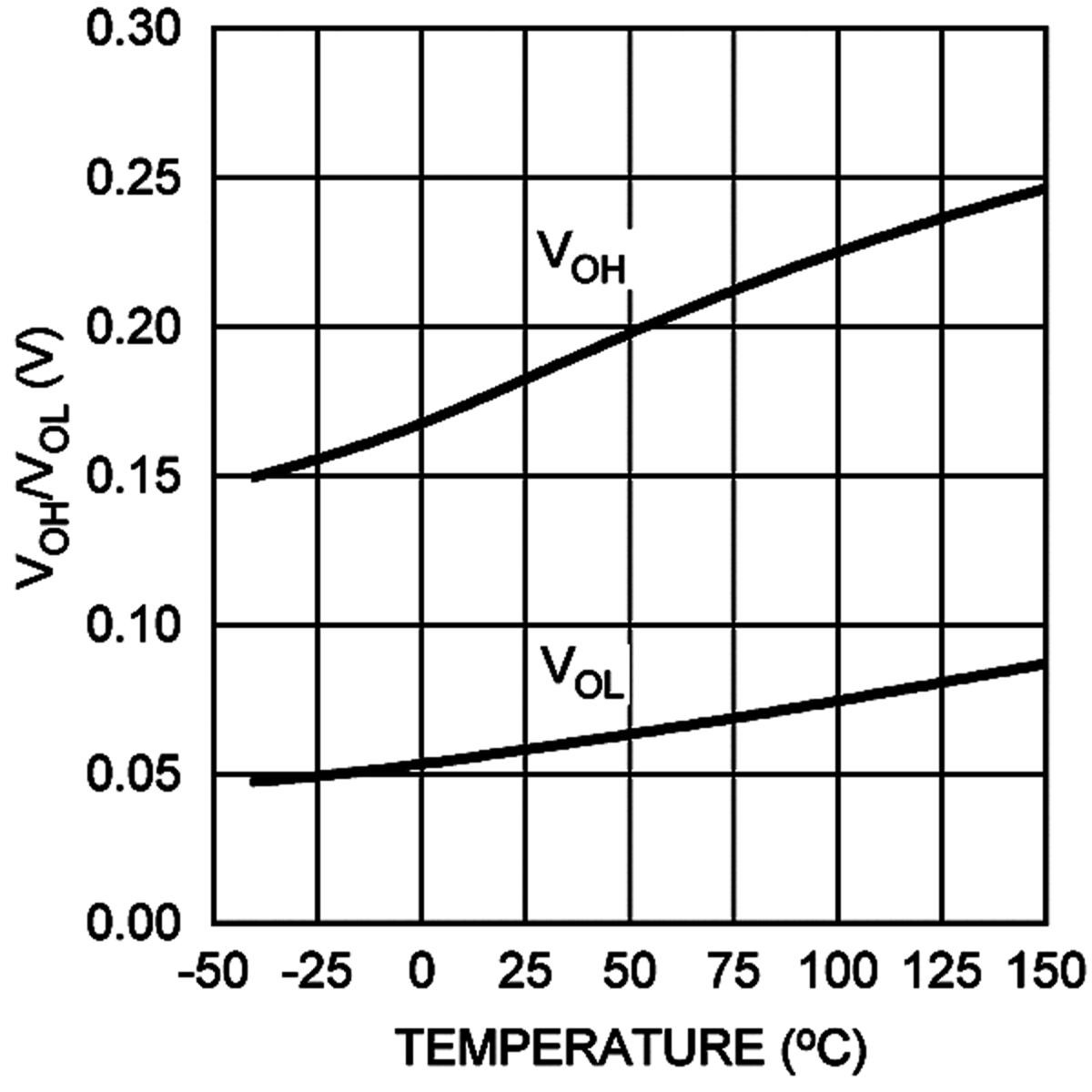

Output Voltage vs Temperature

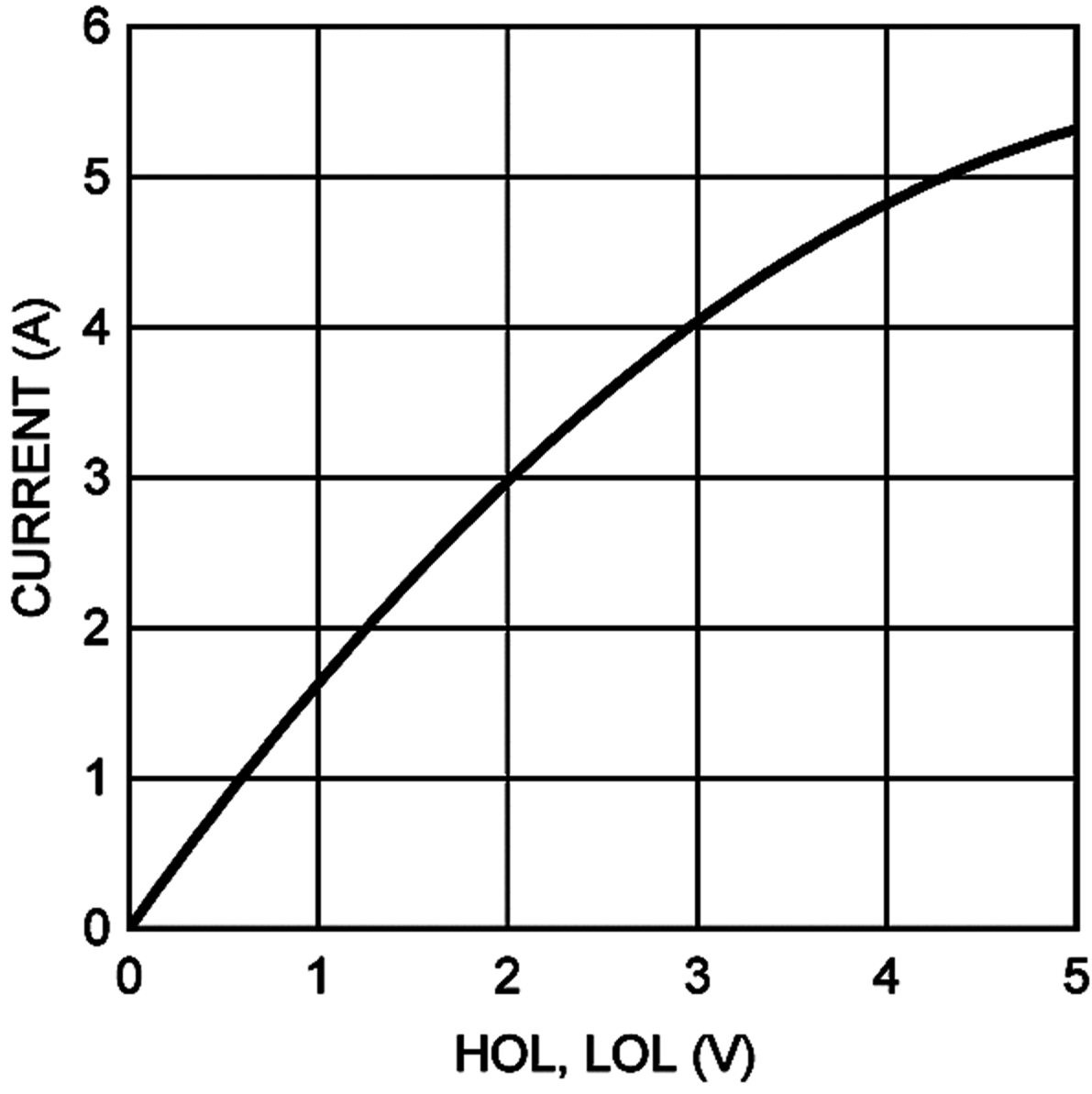

Figure 3. Peak Sink Current vs Output Voltage
Figure 5. IHBO vs Frequency

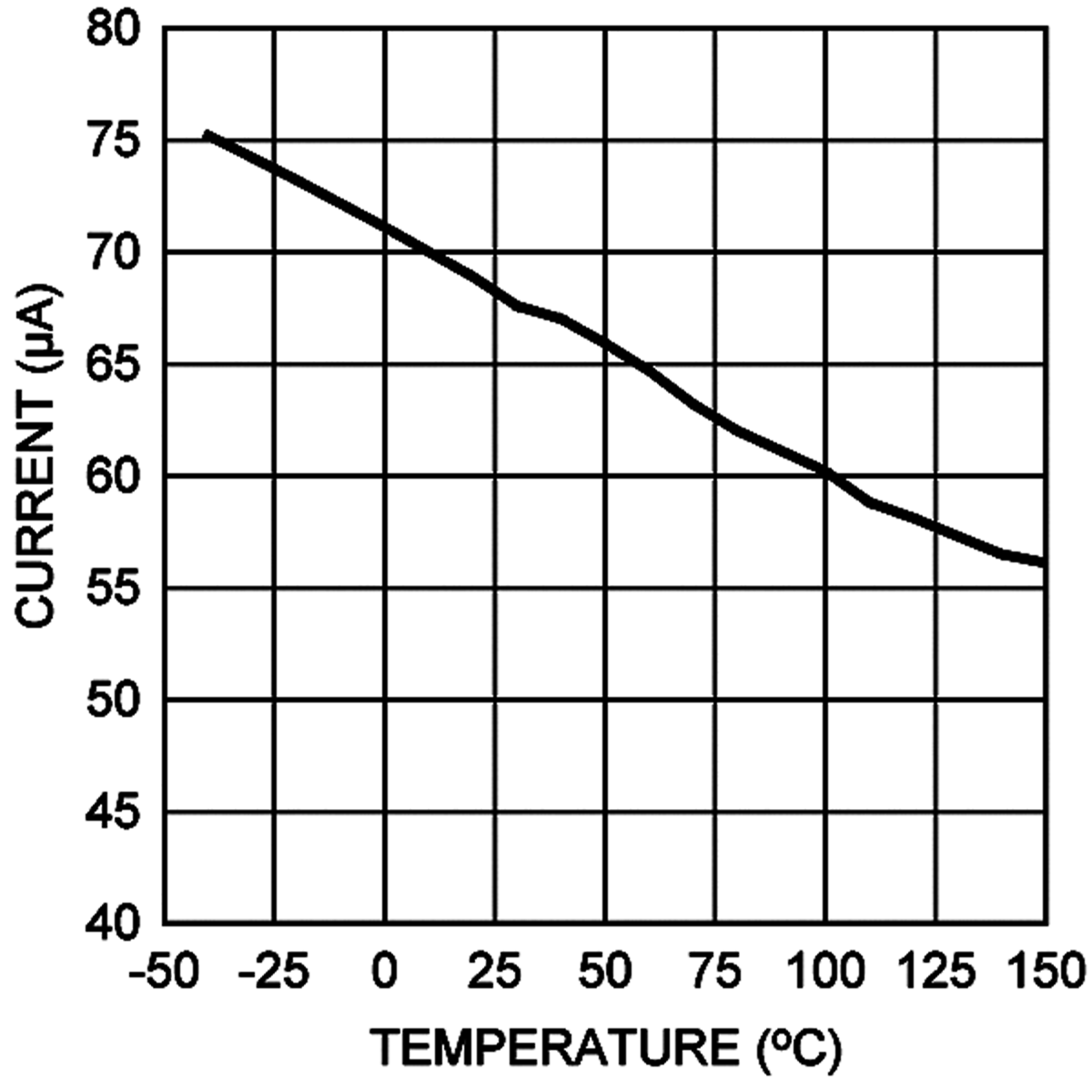

Figure 7. IHB vs Temperature

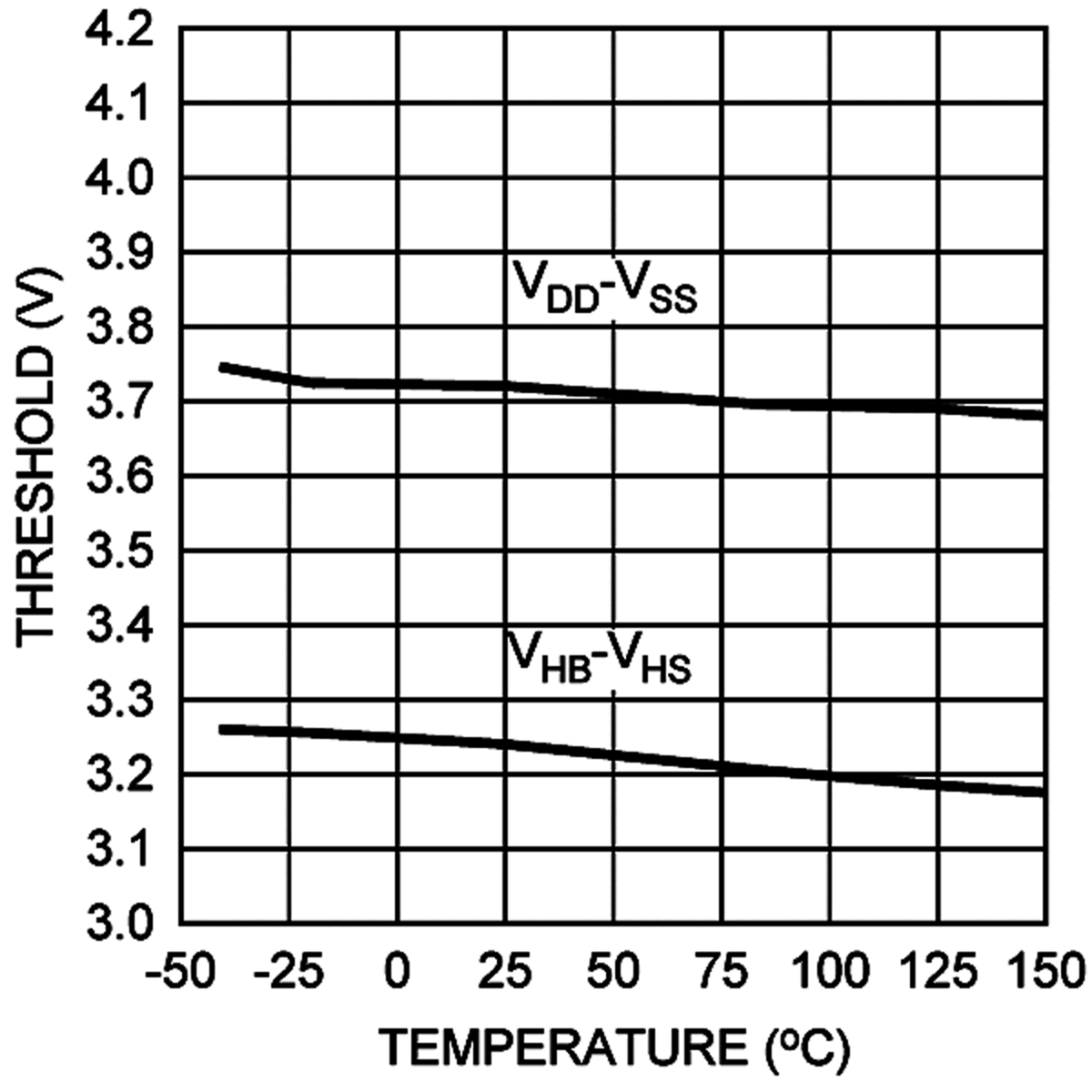

Figure 9. UVLO Falling Thresholds vs Temperature

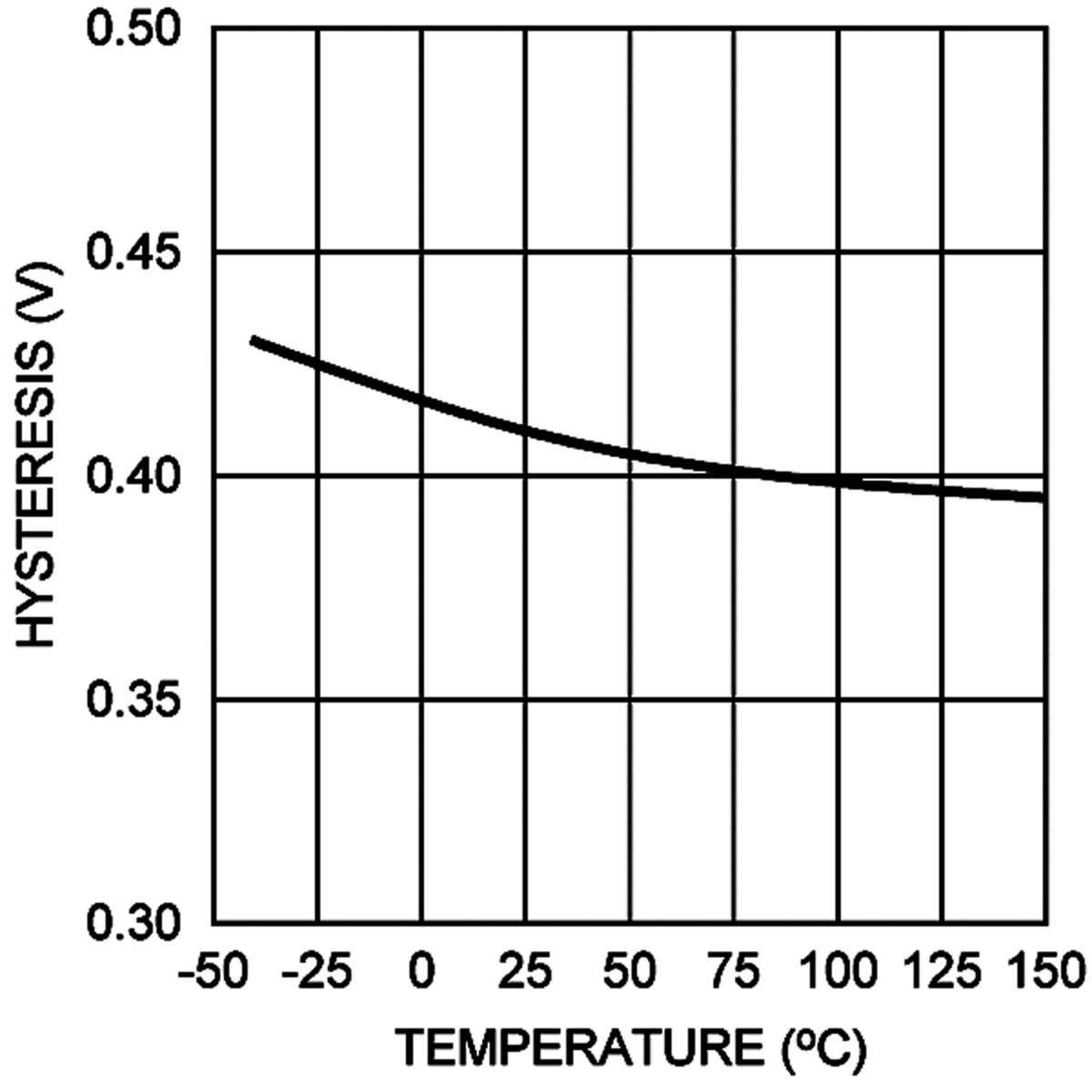

Figure 11. Input Threshold Hysteresis vs Temperature

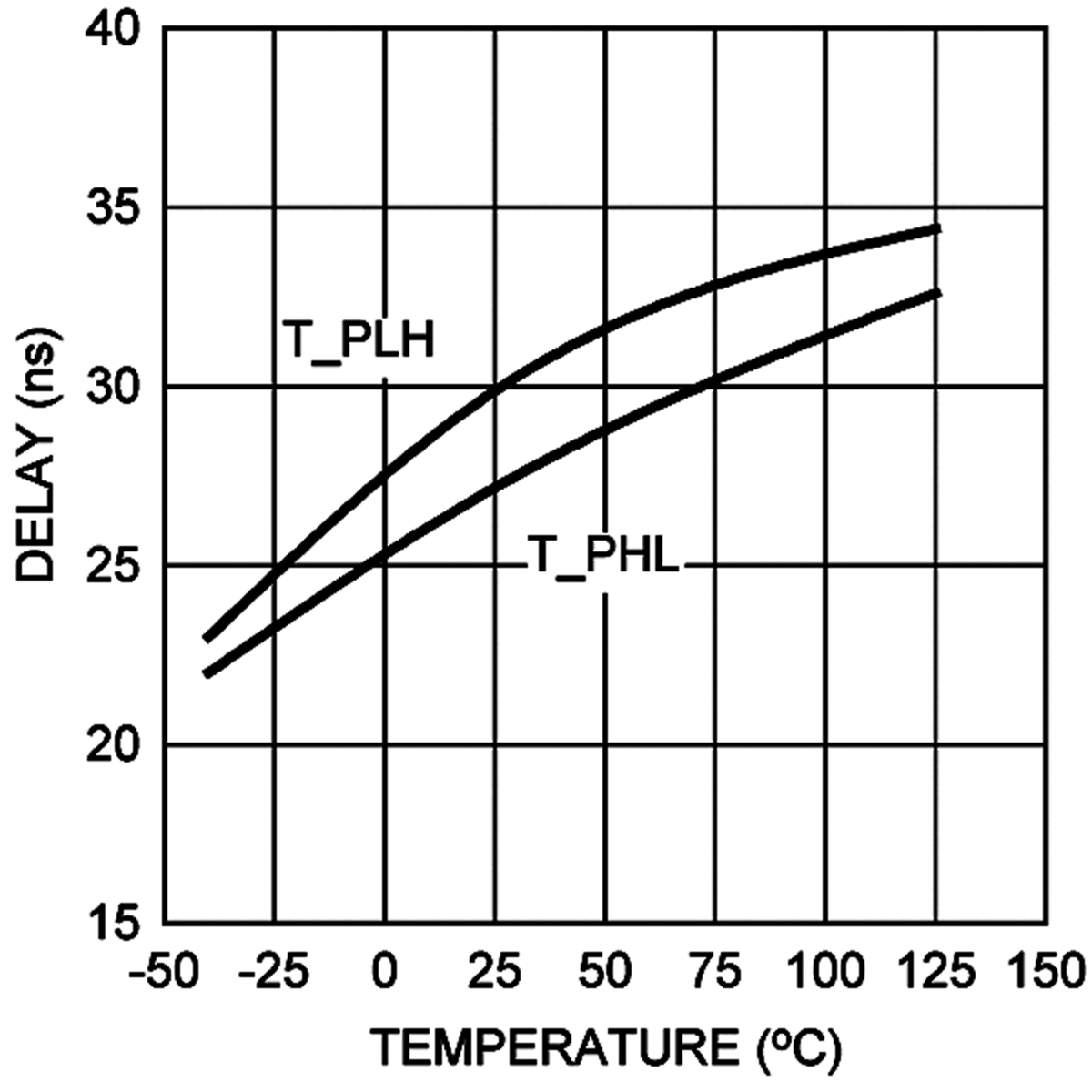

Figure 13. Propagation Delay vs Temperature
| Note: Unless otherwise specified, | ||
| VDD = VHB = 5 V, VSS = VHS = 0 V. | ||
