10.3.3 LM2735 Thermal Models
Heat is dissipated from the LM2735 and other devices. The external loss elements include the Schottky diode, inductor, and loads. All loss elements will mutually increase the heat on the PCB, and therefore increase each other’s temperatures.

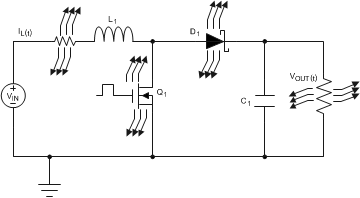

Figure 47. Thermal Schematic

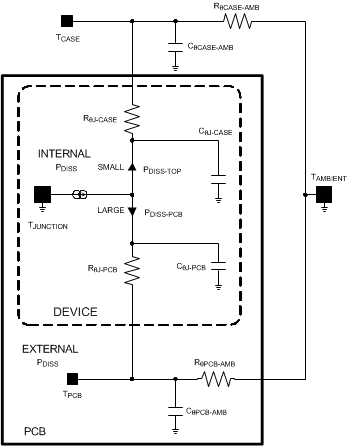

Figure 48. Associated Thermal Model
