8.2.11 LM2735Y WSON Design Example 11

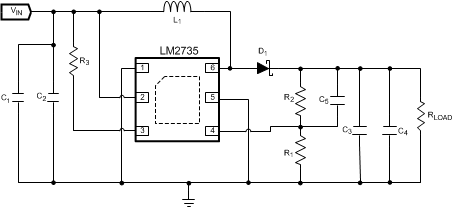

Figure 32. LM2735Y (520 kHz): VIN = 3.3 V, VOUT = 20 V at 150 mA | PART ID | PART VALUE | MANUFACTURER | PART NUMBER |
|---|---|---|---|
| U1 | 2.1-A Boost Regulator | TI | LM2735YSD |
| C1 Input Capacitor | 10 µF, 6.3 V, X5R | TDK | C2012X5R0J106K |
| C2 Input Capacitor | 10 µF, 6.3 V, X5R | TDK | C2012X5R0J106K |
| C3 Output Capacitor | 10 µF, 25 V, X5R | TDK | C3216X5R1E106M |
| C4 Output Capacitor | No Load | ||
| C5 Comp Capacitor | 470 pF | TDK | C1608X5R1H471K |
| D1, Catch Diode | 0.4 Vf Schottky 500 mA, 30 VR | Vishay | MBR0530 |
| L1 | 22 µH 1.5 A | Coilcraft | DS3316P-223ML |
| R1 | 10.0 kΩ, 1% | Vishay | CRCW06031002F |
| R2 | 150 kΩ, 1% | Vishay | CRCW06031503F |
| R3 | 100 kΩ, 1% | Vishay | CRCW06031003F |
