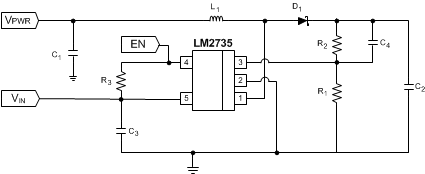

8.2.17 LM2735X SOT-23 LED Design Example 17 Two-Input Voltage Rail Application
Figure 38. LM2735X (1.6 MHz): VPWR = 9 V in = 2.7 V - 5.5 V, VOUT = 12 V at 500 mA | PART ID | PART VALUE | MANUFACTURER | PART NUMBER |
|---|---|---|---|
| U1 | 2.1-A Boost Regulator | TI | LM2735XMF |
| C1, Input Capacitor | 10 µF, 6.3 V, X5R | TDK | C2012X5R0J106K |
| C2, Output Capacitor | 10 µF, 25 V, X5R | TDK | C3216X5R1E106M |
| C3 VIN Capacitor | 0.1 µF, 6.3 V, X5R | TDK | C2012X5R0J104K |
| C4 Comp Capacitor | 1000 pF | TDK | C1608X5R1H102K |
| D1, Catch Diode | 0.4 Vf Schottky 1 A, 20 VR | ST | STPS120M |
| L1 | 6.8 µH 2 A | Coilcraft | DO1813H-682ML |
| R1 | 10.0 kΩ, 1% | Vishay | CRCW08051002F |
| R2 | 86.6 kΩ, 1% | Vishay | CRCW08058662F |
| R3 | 100 kΩ, 1% | Vishay | CRCW06031003F |
