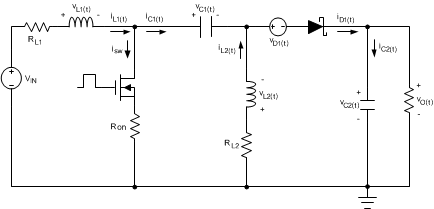

8.2.18.1.3 Steady State Analysis With Loss Elements
Using inductor volt-second balance & capacitor charge balance, the following equations are derived:
Equation 24.
Equation 25.
Therefore:
Equation 26.
One can see that all variables are known except for the duty cycle (D). A quadratic equation is needed to solve for D. A less accurate method of determining the duty cycle is to assume efficiency, and calculate the duty cycle.
Equation 27.
Equation 28.
Figure 41. Efficiencies for Typical SEPIC Application
