14.2.1 Primary Application
The DRV8353M is shown being used for a single supply, three-phase BLDC motor drive with individual half-bridge current sense in this application example.

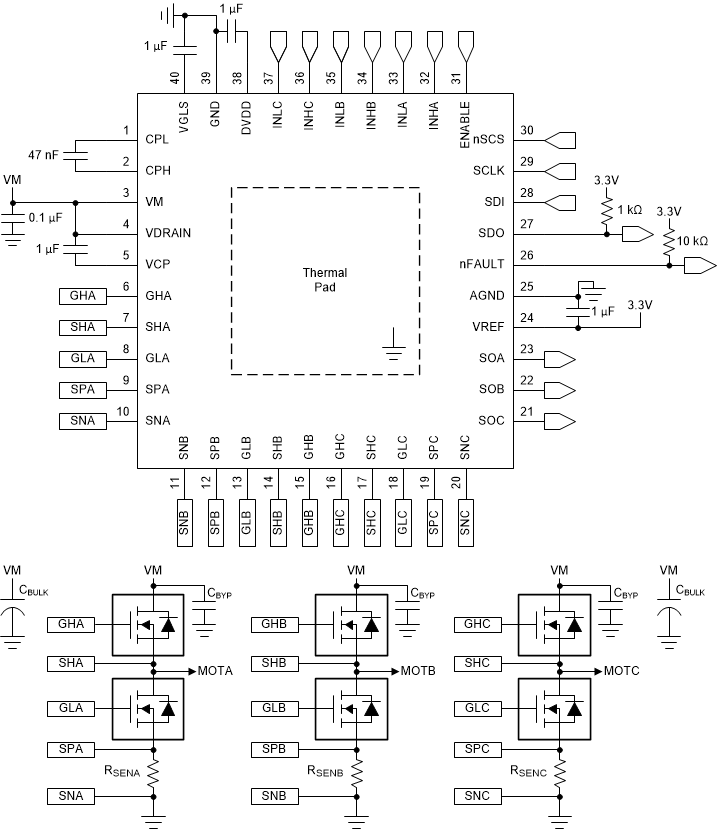

Figure 14-1 Primary
Application Schematic
