10.1 Power Supply Consideration in Generator Mode
When the motor shaft of BLDC or PMSM motor is turned by an external force, the motor windings will generate a voltage on the motor inputs. This condition is known as generator mode or motor back-drive. In the generator mode, a positive voltage can be observed on SHx pins of the device. If there is a switch between VDRAIN and VM (SWVDRAIN in Figure 67 ) and the following conditions exist in the system, the absolute max voltage of VCP with respect to VM needs to be reviewed;
- Generator mode
- SWVDRAIN is off
- VM and VCP are low voltage (e.g. VM = 0V)

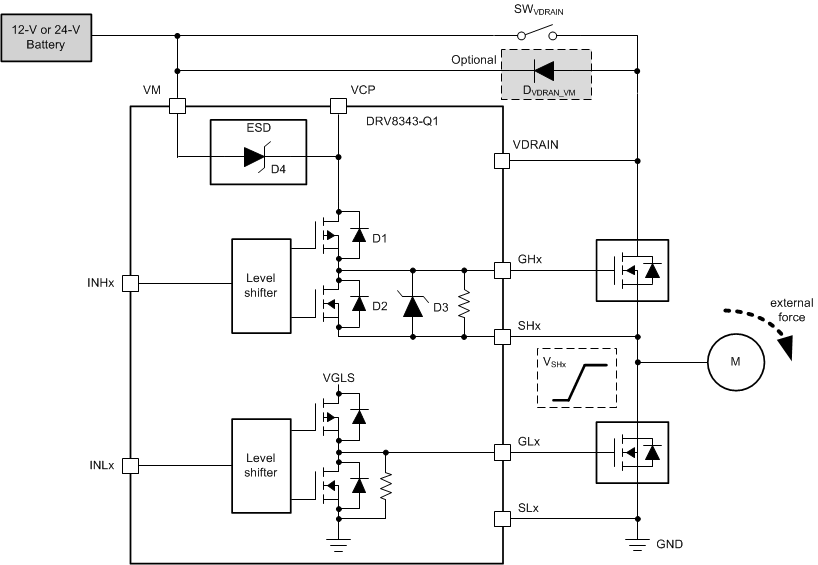

Figure 67. Power Supply Consideration in Generator mode
