8.3.1.2.2 Hardware Interface
Hardware interface devices convert the four SPI pins into four resistor-configurable inputs which are IDRIVE, MODE, and VDS. This conversion lets the application designer configure the most common device settings by tying the pin logic high or logic low, or with a simple pullup or pulldown resistor. This removes the requirement for an SPI bus from the external controller. General fault information can still be obtained through the nFAULT pin.
- The IDRIVE pin configures the gate drive current strength.
- The MODE pin configures the PWM control mode.
- The VDS pin configures the voltage threshold of the VDS overcurrent monitors.
For more information on the hardware interface, see the Pin Diagrams section.

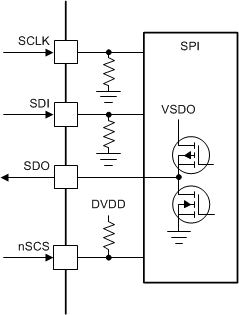

Figure 16. SPI

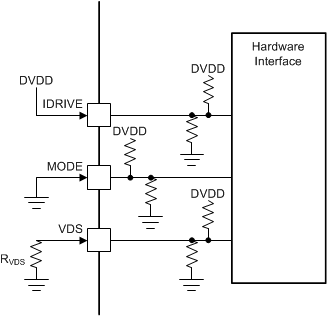

Figure 17. Hardware Interface
