8.3.1.1.2 3x PWM Mode (PWM_MODE = 001b or MODE Pin = 18 kΩ to AGND)
In 3x PWM mode, the INHx pin controls each half-bridge and supports two output states: low or high. The INLx pin is used to put the half bridge in the Hi-Z state. If the Hi-Z state is not required, tie all INLx pins to logic high. The corresponding INHx and INLx signals control the output state as listed in Table 5.
Table 5. 3x PWM Mode Truth Table
| INLx | INHx | GLx | GHx | SHx + DLx |
|---|---|---|---|---|
| 0 | X | L | L | Hi-Z |
| 1 | 0 | H | L | L |
| 1 | 1 | L | H | H |

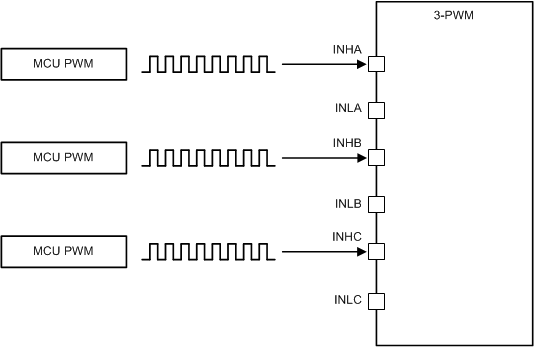

Figure 9. 3-PWM Mode
