6.6 SPI Timing Requirements (Slave Mode Only)
| MIN | NOM | MAX | UNIT | |||
|---|---|---|---|---|---|---|
| tSPI_READY | SPI read after power on | PVDD > VPVDD_UVLO1 | 5 | 10 | ms | |
| tCLK | Minimum SPI clock period | 100 | ns | |||
| tCLKH | Clock high time | 40 | ns | |||
| tCLKL | Clock low time | 40 | ns | |||
| tSU_SDI | SDI input data setup time | 20 | ns | |||
| tHD_SDI | SDI input data hold time | 30 | ns | |||
| tD_SDO | SDO output data delay time, CLK high to SDO valid | CL = 20 pF | 20 | ns | ||
| tHD_SDO | SDO output hold time | 40 | ns | |||
| tSU_SCS | SCS setup time | 50 | ns | |||
| tHD_SCS | SCS hold time | 50 | ns | |||
| tHI_SCS | SCS minimum high time before SCS active low | 400 | ns | |||
| tACC | SCS access time, SCS low to SDO out of high impedance | 10 | ns | |||
| tDIS | SCS disable time, SCS high to SDO high impedance | 10 | ns | |||

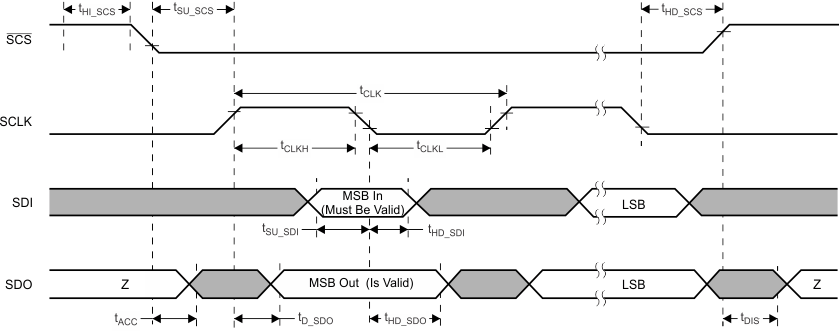

Figure 1. SPI Slave Mode Timing Definition
