SNLS579A April 2018 – November 2018 DP83TC811S-Q1
PRODUCTION DATA.
There are two evaluation board references for the DP83TC811S-Q1; the DP83TC811EVM is a media converter board specifically designed for interoperability and bit error rate testing while the DP83TC811SEVM is an xMII board for MAC interface support and compliance testing.

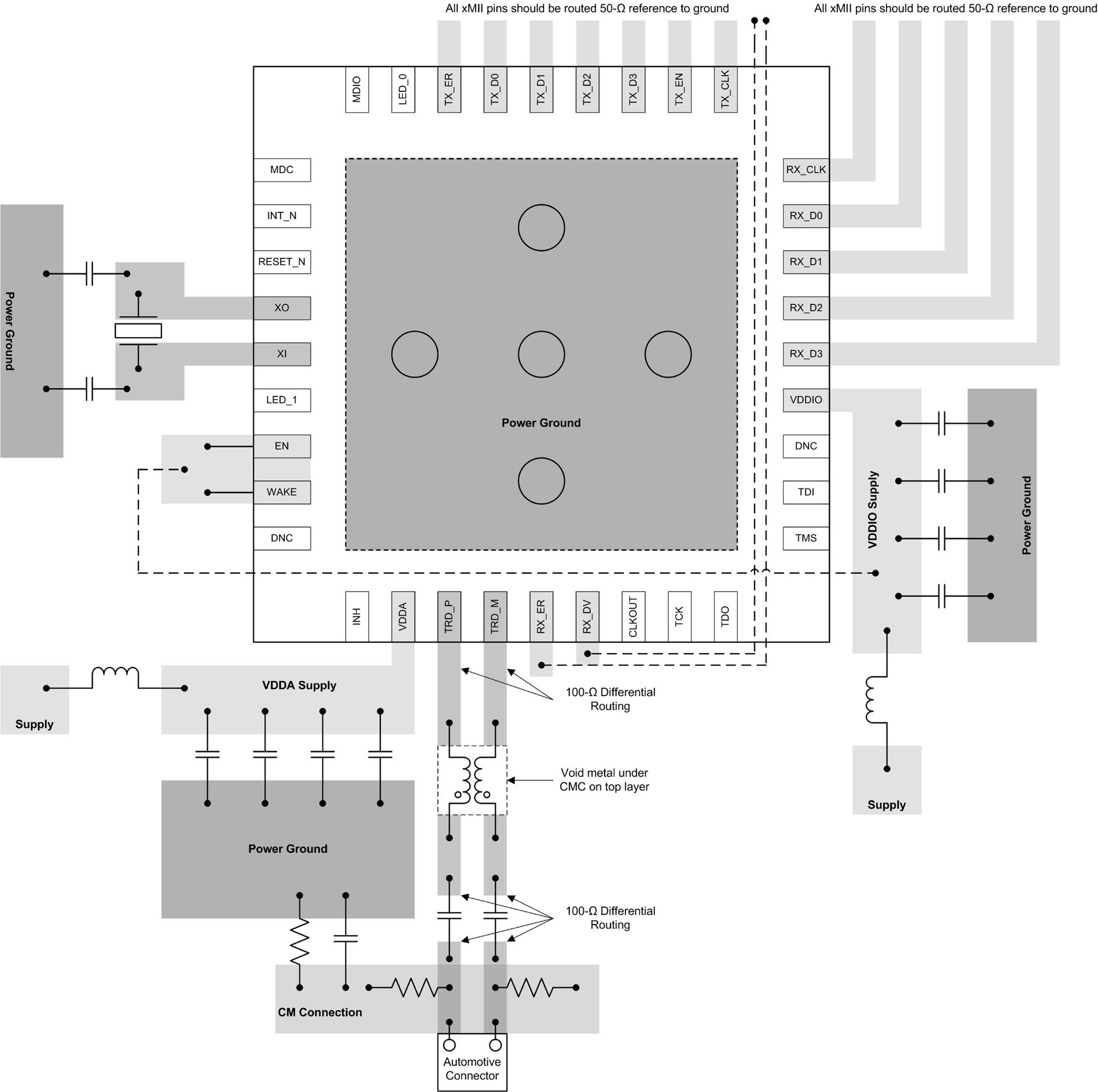

Figure 150. DP83TC811S-Q1 MII / RMII / RGMII Layout Recommendation

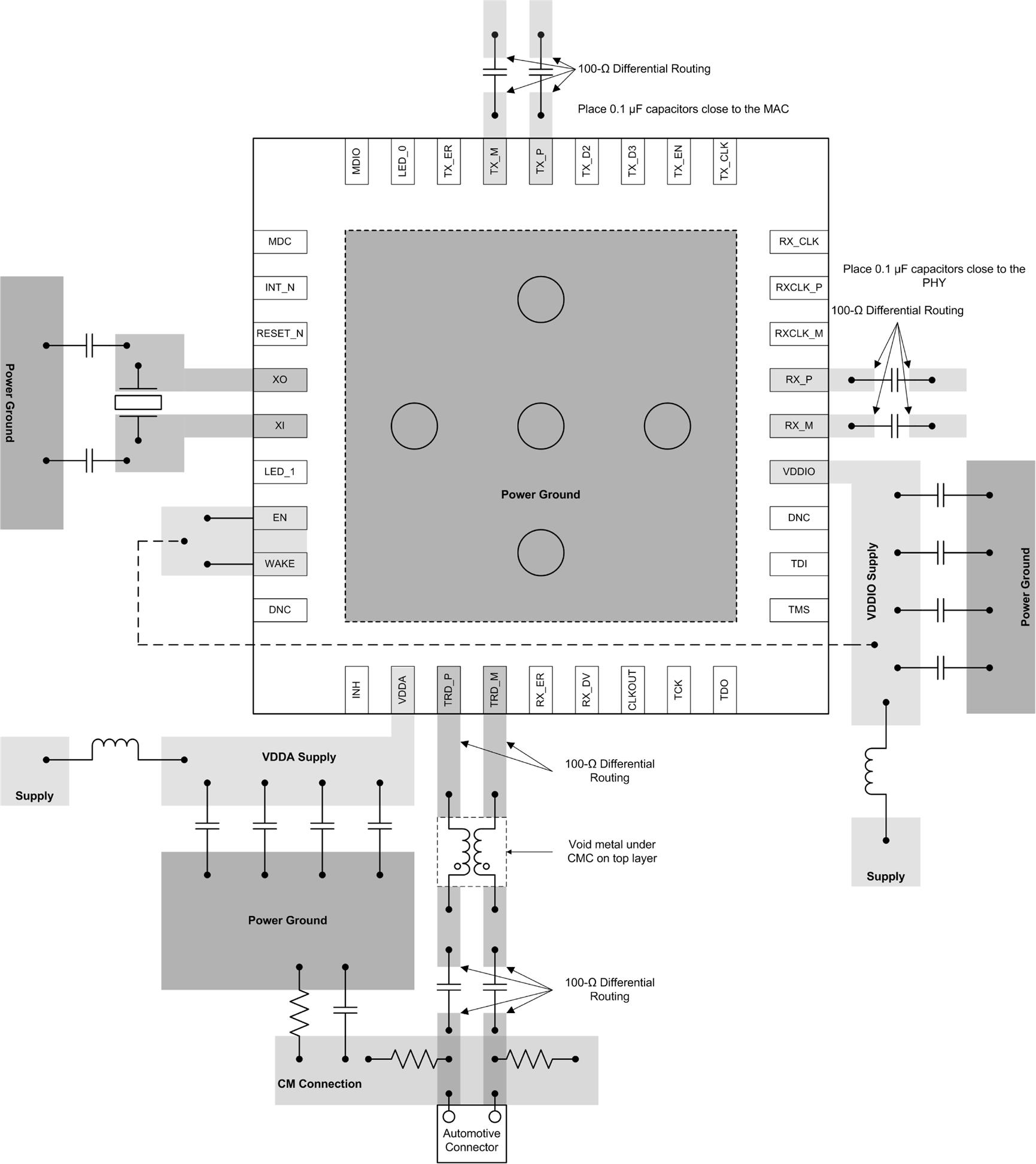

Figure 151. DP83TC811S-Q1 SGMII Layout Recommendation

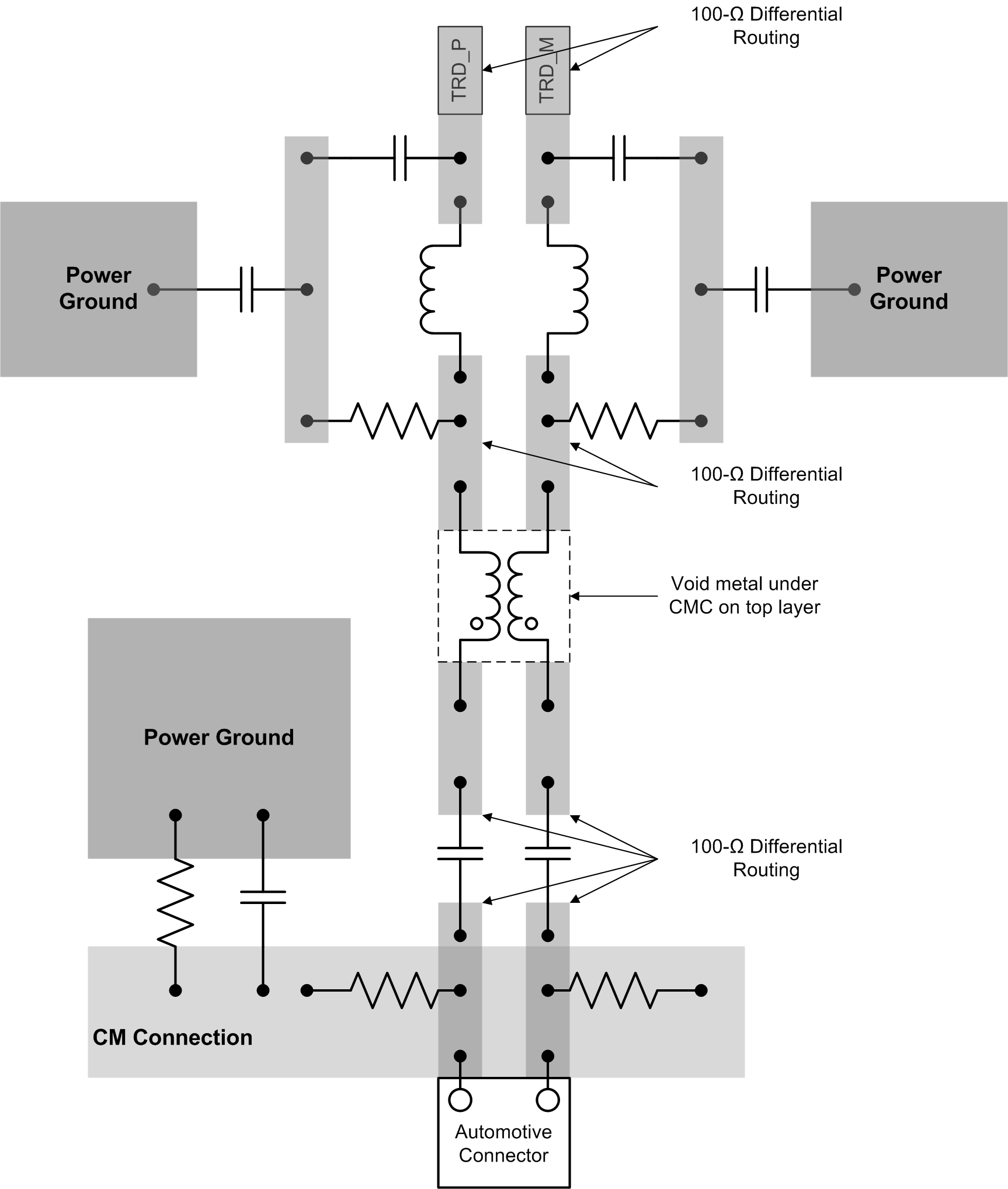

Figure 152. MDI Low-Pass Filter Layout Recommendation
